    Pivot Hinge

    Patented / Registered DesignEasy InstallationRecess Mount

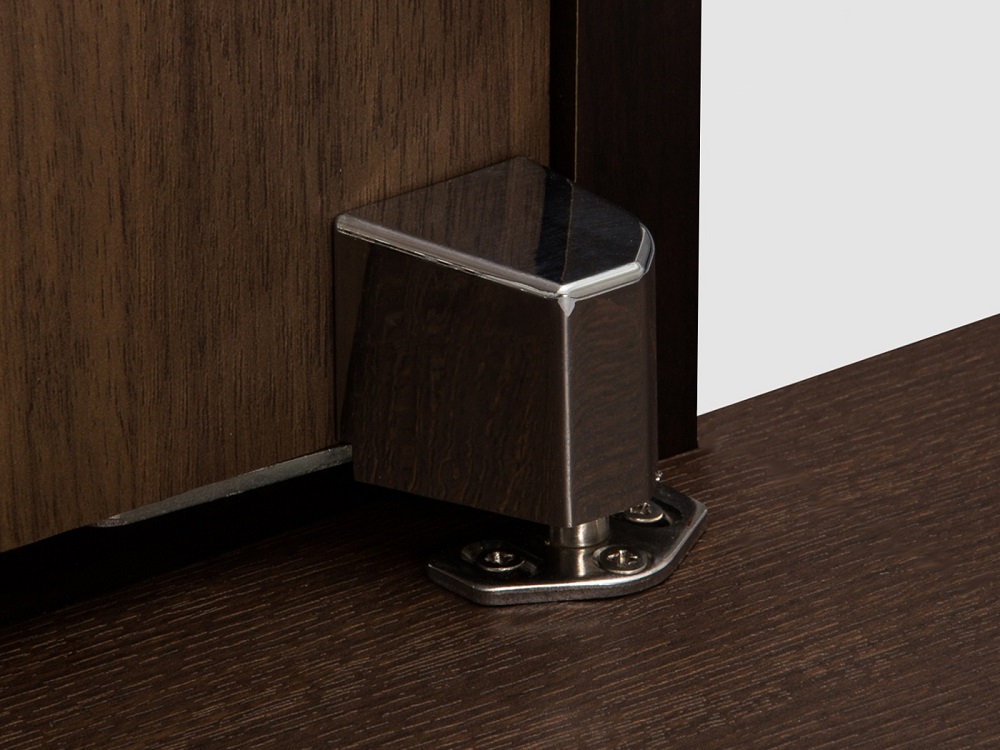

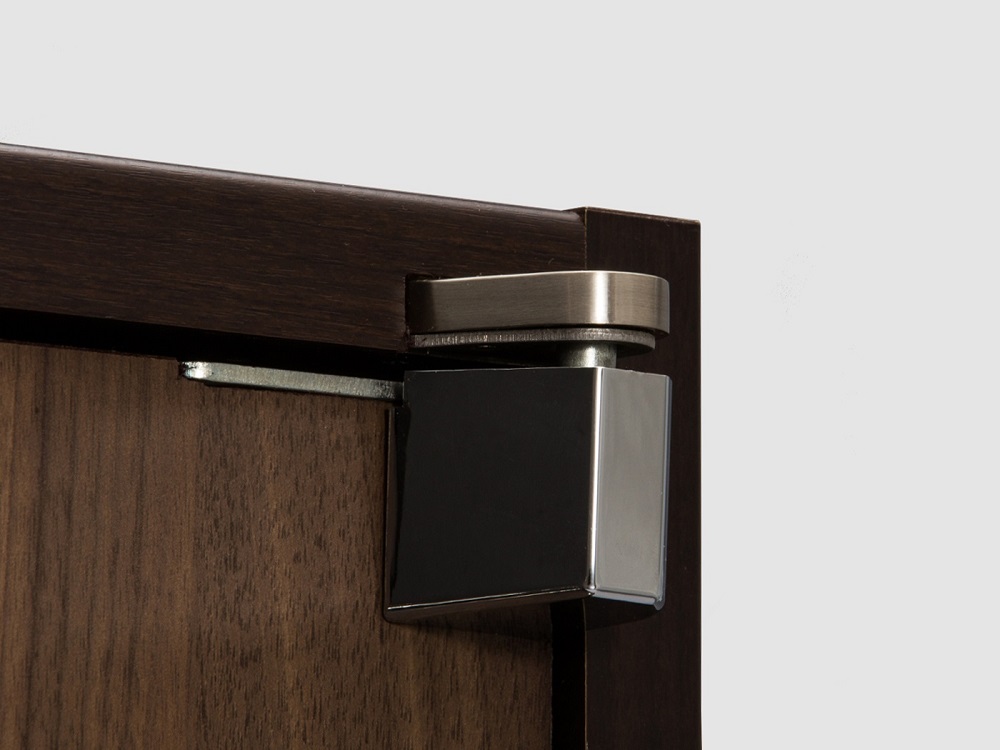

    This hinge is fixed in the top and bottom of the door. The design is slim, so it does not interfere with the design of the door. Once the bottom part is fixed, the upper part is easily set by pulling down the upper pin and put it back in place. Once installed, the front-back, right-left, up-down adjustment can be made easily using a screwdriver. This type of hinge is very durable as it has passed 200,000 operation tests, and it is also available in four high-quality finishing colors.

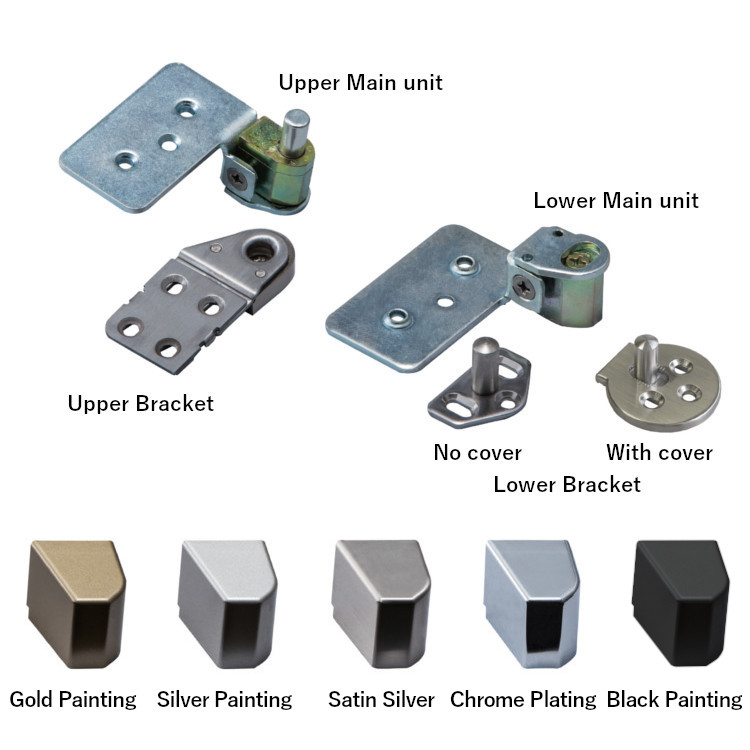

    Material
    〈Main unit〉
    Steel, ZDC
    〈Cover〉
    Resin
    Finish / Color
    Gold Painting
    Silver Painting
    Satin Silver
    Chrome Plating
    Included Screws
    〈Upper Bracket〉
    3.5×25 Flat head tapping screw 4pcs
    〈Lower Bracket〉
    3.5×25 Flat head wood screw 3pcs
    〈Main unit〉
    3.5×30 Flat head tapping screw 6pcs
    Load Capacity
    30kg(294N)
    Adjusting Range
    Front-Back±2
    Left-Right±2
    Up-Down +2mm, -4mm
    Product Catalog

    PRICE LISTPivot Hinge PRICE LIST

    Product No. Product Specification Price Action
    215011 Left-Hand　Color:Gold Painting
    Lower Bracket:No cover     		$40.48 Contact Us
    215012 Left-Hand　Color:Silver Painting
    Lower Bracket:No cover     		$40.48 Contact Us
    215013 Left-Hand　Color:Satin Silver
    Lower Bracket:No cover     		$40.48 Contact Us
    215014 Left-Hand　Color:Chrome Plating
    Lower Bracket:No cover     		$40.48 Contact Us
    215015 Right-Hand　Color:Gold Painting
    Lower Bracket:No cover     		$40.48 Contact Us
    215016 Right-Hand　Color:Silver Painting
    Lower Bracket:No cover     		$40.48 Contact Us
    215017 Right-Hand　Color:Satin Silver
    Lower Bracket:No cover     		$40.48 Contact Us
    215018 Right-Hand　Color:Chrome Plating
    Lower Bracket:No cover     		$40.48 Contact Us
    215011N Left-Hand　Color:Gold Painting
    Lower Bracket:With cover     		$48.07 Contact Us
    215012N Left-Hand　Color:Silver Painting
    Lower Bracket:With cover     		$48.07 Contact Us
    215013N Left-Hand　Color:Satin Silver
    Lower Bracket:With cover     		$48.07 Contact Us
    215014N Left-Hand　Color:Chrome Plating
    Lower Bracket:With cover     		$48.07 Contact Us
    215015N Right-Hand　Color:Gold Painting
    Lower Bracket:With cover     		$48.07 Contact Us
    215016N Right-Hand　Color:Silver Painting
    Lower Bracket:With cover     		$48.07 Contact Us
    215017N Right-Hand　Color:Satin Silver
    Lower Bracket:With cover     		$48.07 Contact Us
    215018N Right-Hand　Color:Chrome Plating
    Lower Bracket:With cover     		$48.07 Contact Us
