Lift Off Hinge Products

DETAILPRODUCT DETAILS

    Lift Off Hinge

    Easy InstallationRecess Mount
    This flag hinge uses high-strength steel for the leaves part, and the hinge itself has passed 200,000 operation tests. Thus, this hinge has excellent strength and durability. In addition, the installation can be done easily as the leaves can be removed and then attached to the door and frame separately. The knuckles are also easy to insert and remove to ease the fixing process.
    Material
    Steel

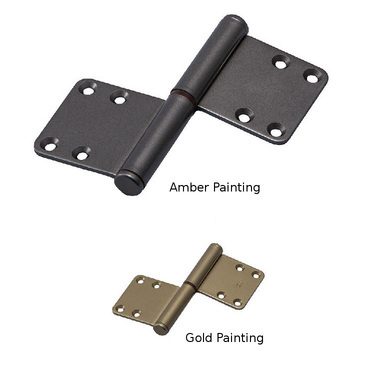

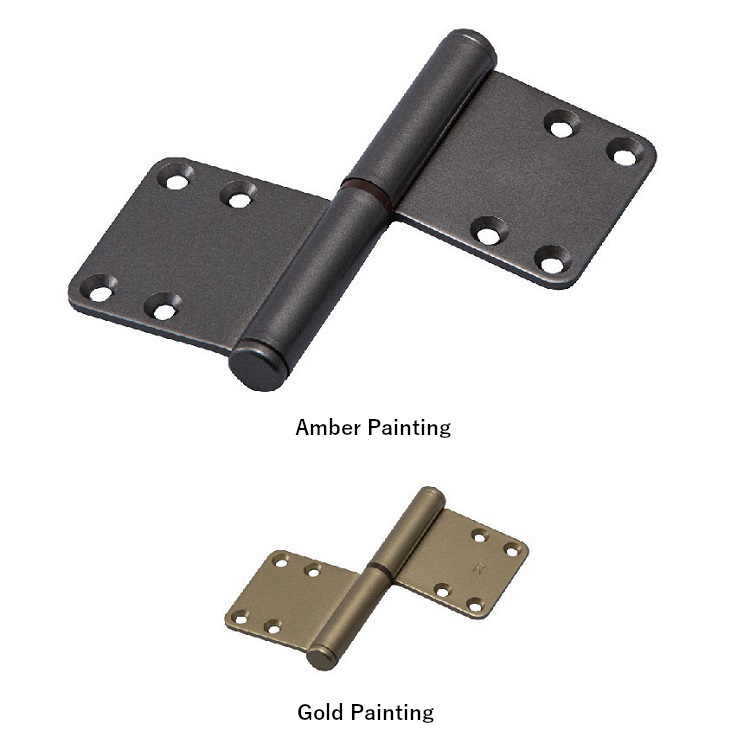

    Finish / Color
    Amber Painting
    Gold Painting
    Included Screws
    4×25 Flat head tapping screw 8pcs
    Load Capacity
    30kg(294N)<br>
    When using 2pcs
    Drawing sheet (PDF)

    PRICE LISTLift Off Hinge PRICE LIST

    Product No. Product Specification Price Action
    201-222 Left-Hand　Color:Amber Painting $6.27 Contact Us
    201-212 Right-Hand　Color:Amber Painting $6.27 Contact Us
    201-223 Left-Hand　Color:Gold Painting $6.27 Contact Us
    201-213 Right-Hand　Color:Gold Painting $6.27 Contact Us
