Concealed Hinged Door Closer Products

DETAILPRODUCT DETAILS

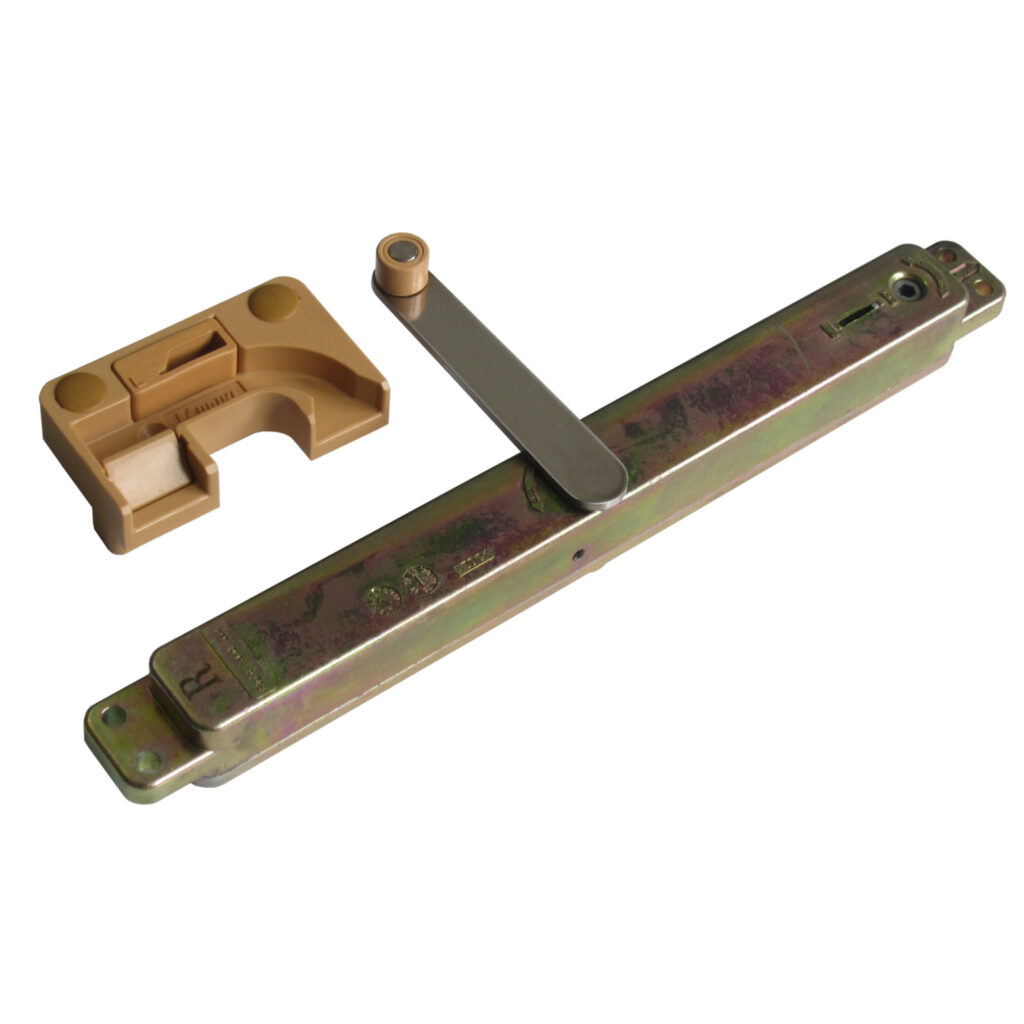

    Concealed Hinged Door Closer

    Patented / Registered DesignEasy InstallationRecess Mount

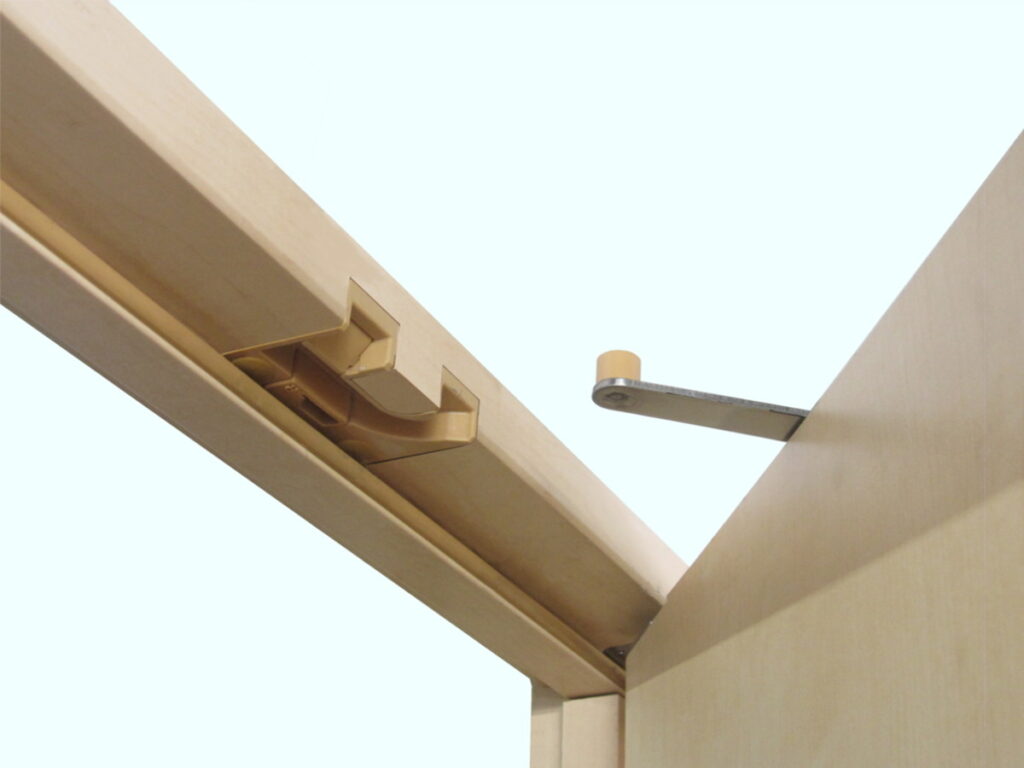

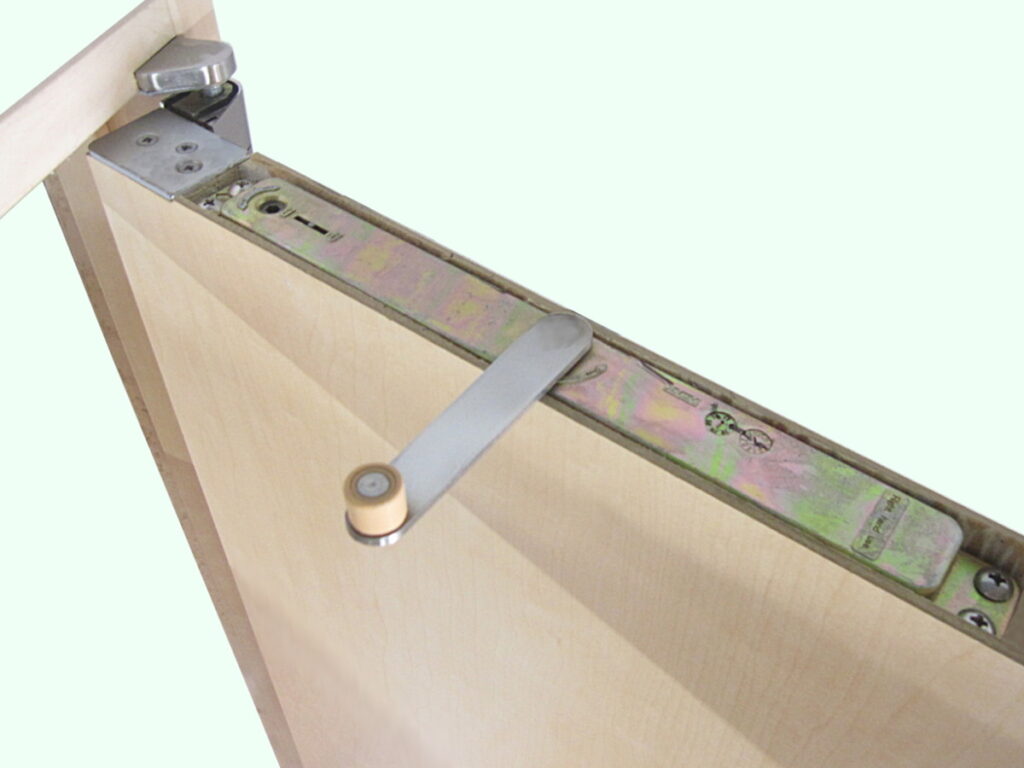

    A concealed hinged door closer for indoor use provides the functionality of an overhead door closer but is fitted within the door leaf and frame. This product helps decelerate the speed of the door at ±100 mm towards the end and self-closing itself slowly to reduce the unpleasant noise of the door hitting the frame and prevent pinched finger accidents. In addition, this type of installation is aesthetically pleasing and helps reduce vandalism, as most of the door closer is hidden from sight. Once installed, the closing speed can also be adjusted.
    Material
    〈Main unit〉
    ZDC
    〈Bracket〉
    Resin
    Finish / Color
    Brown
    Included Screws
    〈Bracket〉
    4×30 Trass head tapping screw 2pcs
    4×20 Flat head tapping screw(D7) 1pcs
    〈Main Unit〉
    4×30 Trass head tapping screw 4pcs
    Attachment：Allen wrench
    Load Capacity
    30kg(294N)<br>
    ※Please contact us for 70kg(686N) pecifications.
    Drawing sheet (PDF)

    PRICE LISTConcealed Hinged Door Closer PRICE LIST

    Product No. Product Specification Price Action
    312-072L Left-Hand
    Color：Brown     		$132.00 Contact Us
    312-072R Right-Hand
    Color：Brown     		$132.00 Contact Us
