    Top Hung Soft Closer Set

    Easy InstallationRecess Mount
    Made to be installed on an indoor sliding door, this top-hung damper will slowly pull the door from ±70 mm before it closes. Thus, it can reduce the unpleasant noise of the door hitting the frame. The door will close completely without any gap regardless of the strength or speed adjusted during the installation. This product has passed the 200,000 times operation test and comes with an adjustable roller, and wheels with bearing for optimal long-term performance. Not only offering excellent technical function, but this soft closer is also fully recessed to embraces a stylish architectural appearance. This top hung soft closer can be attached to both ends of the door. ※1
    ※1 Please contact us for further details.
    Material
    〈Main unit, Hook〉
    Stainless
    〈4 Wheels Adjuster〉
    Resin
    〈Sliding Door Rail〉
    Aluminum
    〈Guide Pin〉
    Stainless, Resin
    Finish / Color
    〈Main unit, Hook〉
    Raw Material
    〈4 Wheels Adjuster〉
    Amber, White
    〈Sliding Door Rail〉
    Silver
    〈Guide Pin〉
    Raw Material
    Included Screws
    〈Hook〉
    3×16 Flat head tapping screw 2pcs
    〈4 Wheels Adjuster〉
    ※Including Soft Closer
    3.5×12 Flat head tapping screw 2pcs
    3.5×20 Pan head tapping screw 4pcs
    〈Sliding Door Rail〉
    3.5×45 Flat head tapping screw
    （The number depends on the rail length.）
    〈Anti-Shake Guide Pin〉
    3.5×25 Flat head tapping screw 2pcs
    Load Capacity
    30kg(294N)

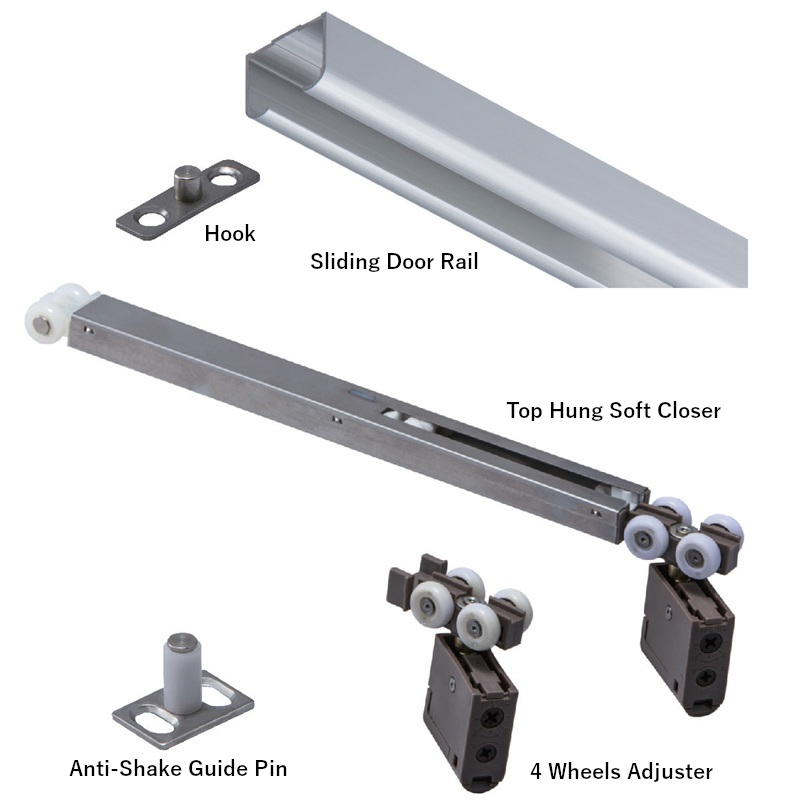

    Set contents

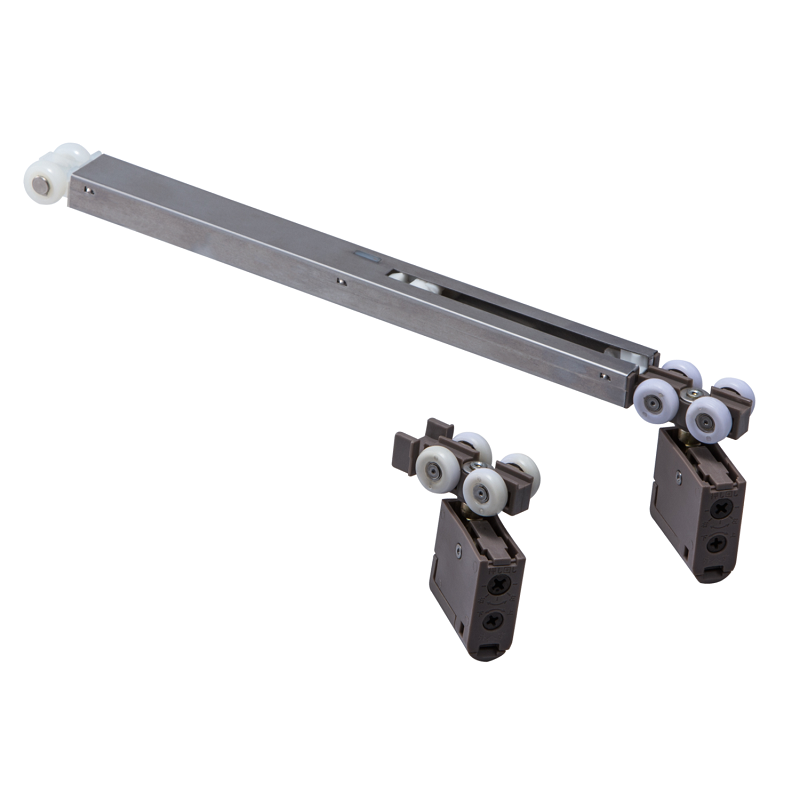

    Sliding Door Soft Closer 1pcs

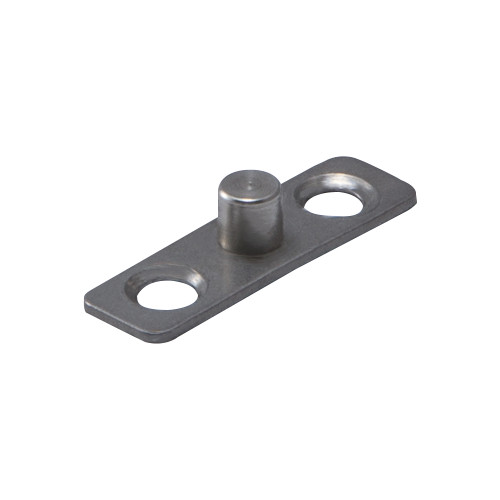

    Hook 1pcs
    4 Wheels Adjuster 1pcs

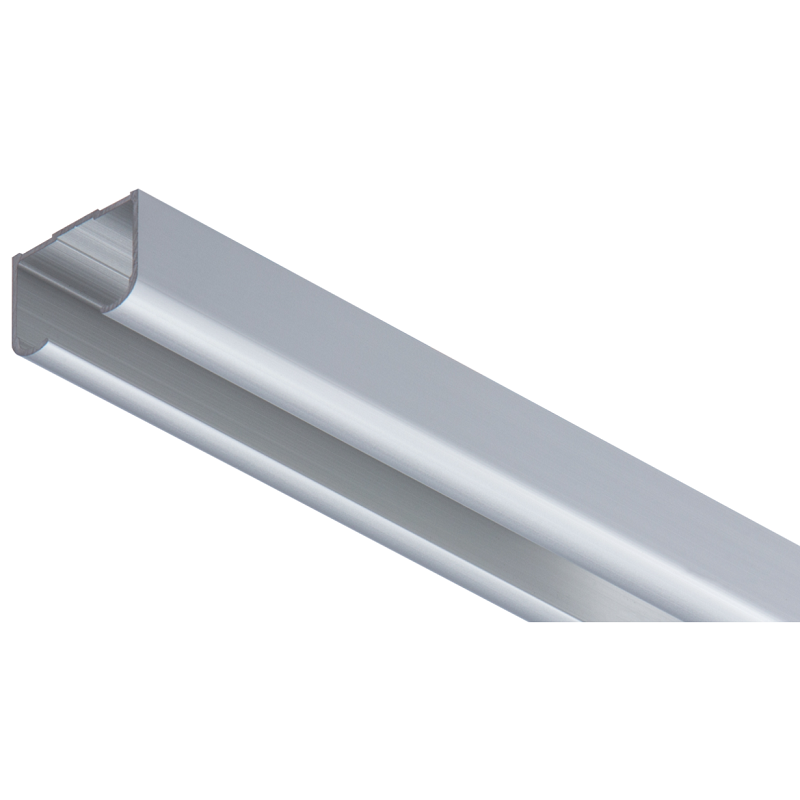

    Sliding Door Rail 1pcs

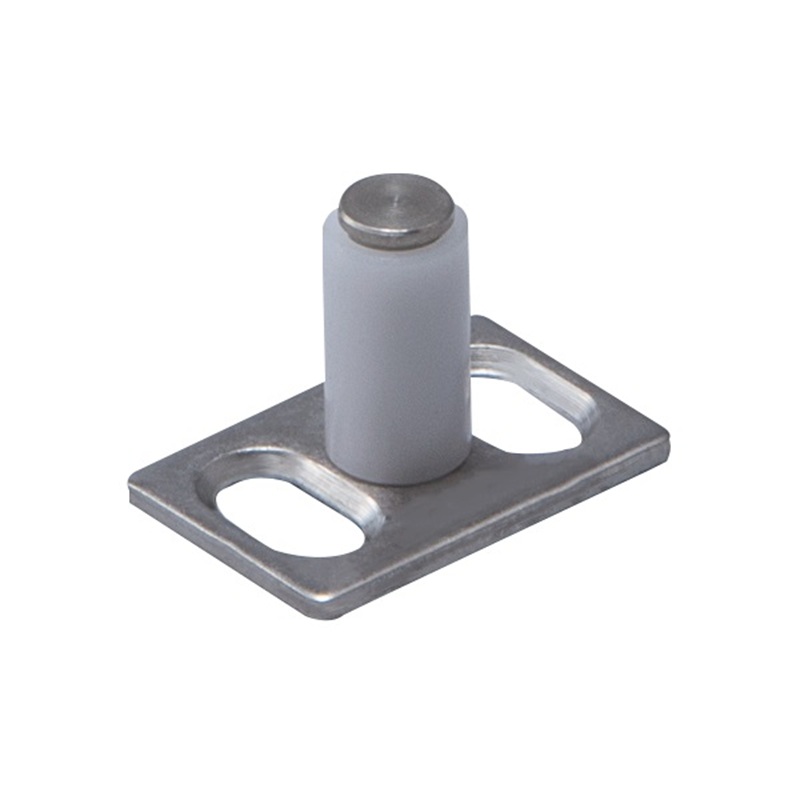

    Anti-Shake Guide Pin 1pcs
    Drawing sheet (PDF)

    PRICE LISTTop Hung Soft Closer Set PRICE LIST

    Product No. Product Specification Price Action
    312-031 Rail length：1,820mm

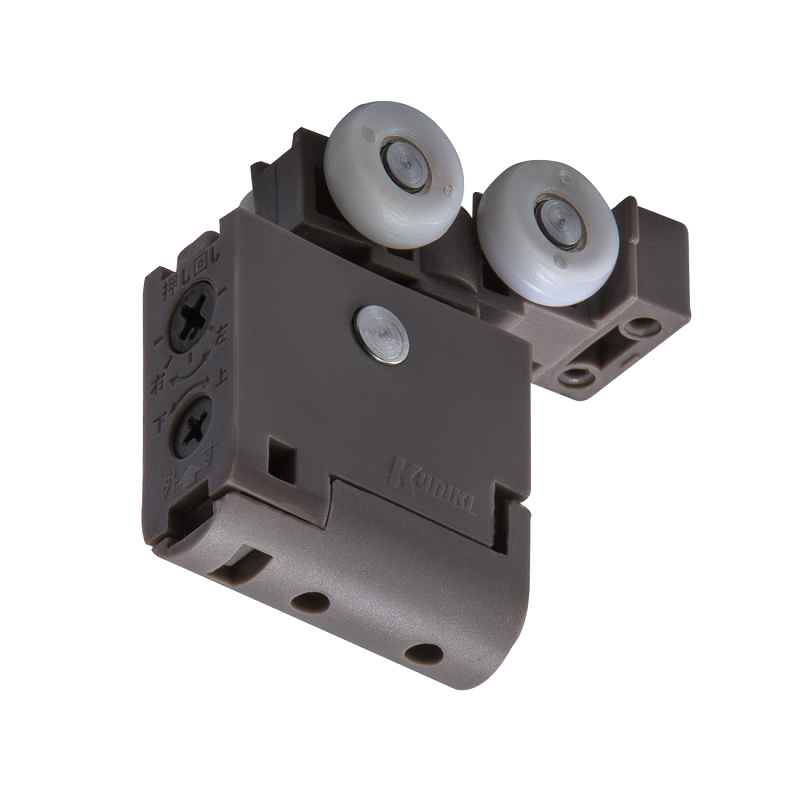

    4 Wheels Adjuster Color：Amber     		$66.00 Contact Us
    312-032 Rail length：2,730mm
    4 Wheels Adjuster Color：Amber     		$96.80 Contact Us
    312-033 Rail length：3,640mm
    4 Wheels Adjuster Color：Amber     		$127.60 Contact Us
    312-031W Rail length：1,820mm

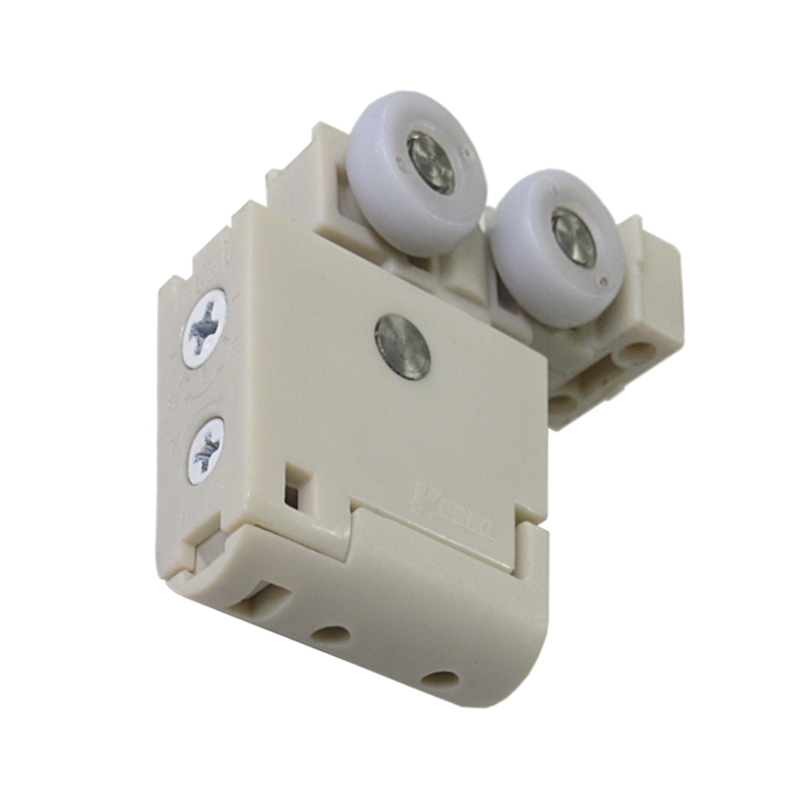

    4 Wheels Adjuster Color：White     		$66.00 Contact Us
    312-032W Rail length：2,730mm
    4 Wheels Adjuster Color：White     		$96.80 Contact Us
    312-033W Rail length：3,640mm
    4 Wheels Adjuster Color：White     		$127.60 Contact Us
    P1-312031 Hook 【Aftermarket Parts】 $8.80 Contact Us
