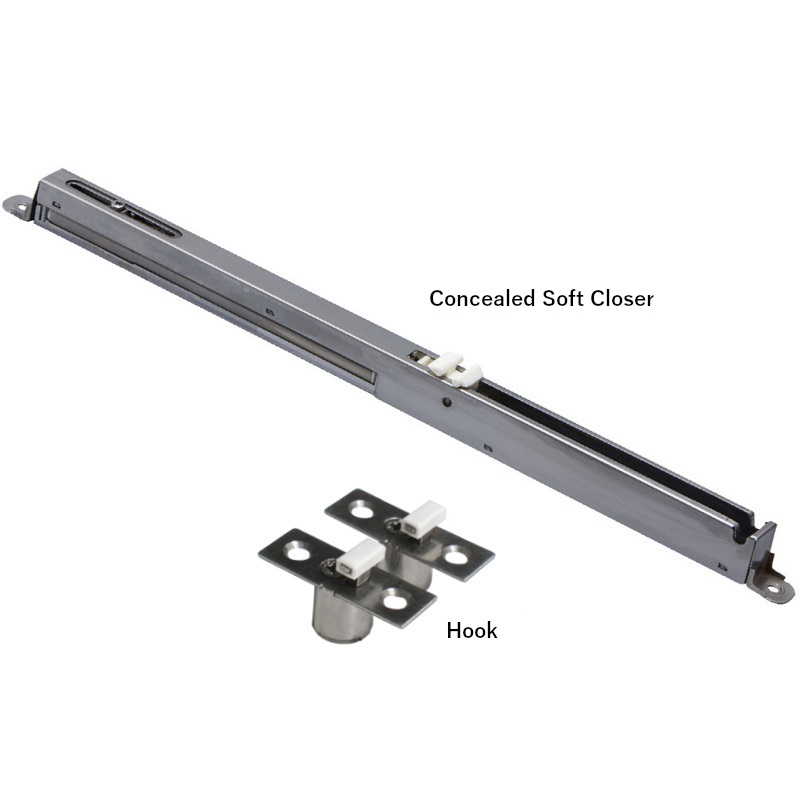

    Concealed Soft Closer

    Easy InstallationRecess Mount
    This is a door damper for an indoor bottom-running sliding door. It will slowly pull the sliding door from about 80mm before the end, and then it will close slowly and quietly. The door will close completely without any gap regardless of the strength adjusted during the installation. As this product is a concealed type, it will not disintegrate the architectural appearance. In addition, this soft closer has also passed 200,000 times operation tests which guarantee long-term use.
    Material
    Stainless, Resin
    Finish / Color
    Raw Material
    Included Screws
    〈Main unit〉
    3.5×20 Truss head tapping screw 2pcs
    〈Hook〉
    3×16 Flat head tapping screw 4pcs
    Load Capacity
    25kg(245N)
    Set contents
    Soft closer 1pcs
    Hook 2pcs
    Drawing sheet (PDF)

    PRICE LISTConcealed Soft Closer PRICE LIST

    Product No. Product Specification Price Action
    312-012 Concealed Soft Closer $44.00 Contact Us
