Outset Sliding Door Parts Products

DETAILPRODUCT DETAILS

    Outset Sliding Door Parts

    Easy InstallationRecess Mount
    With this set, you can easily replace a hinged door with a sliding door.
    Material

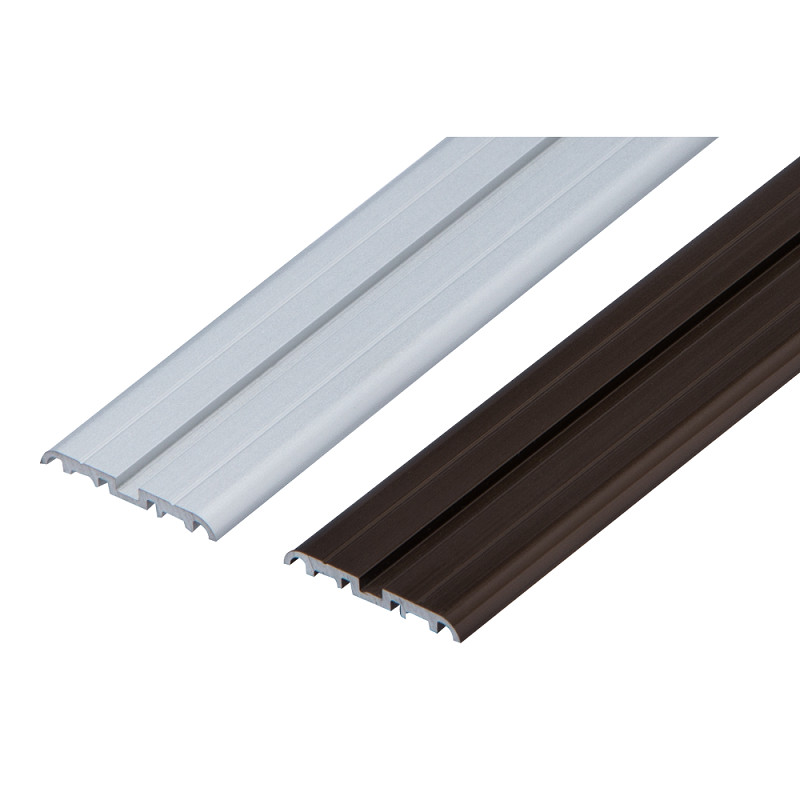

    〈Upper Rail〉
    Aluminium
    〈Lower Rail〉
    Aluminium
    〈KT Adjusting Roller Door〉
    Resin, Steel

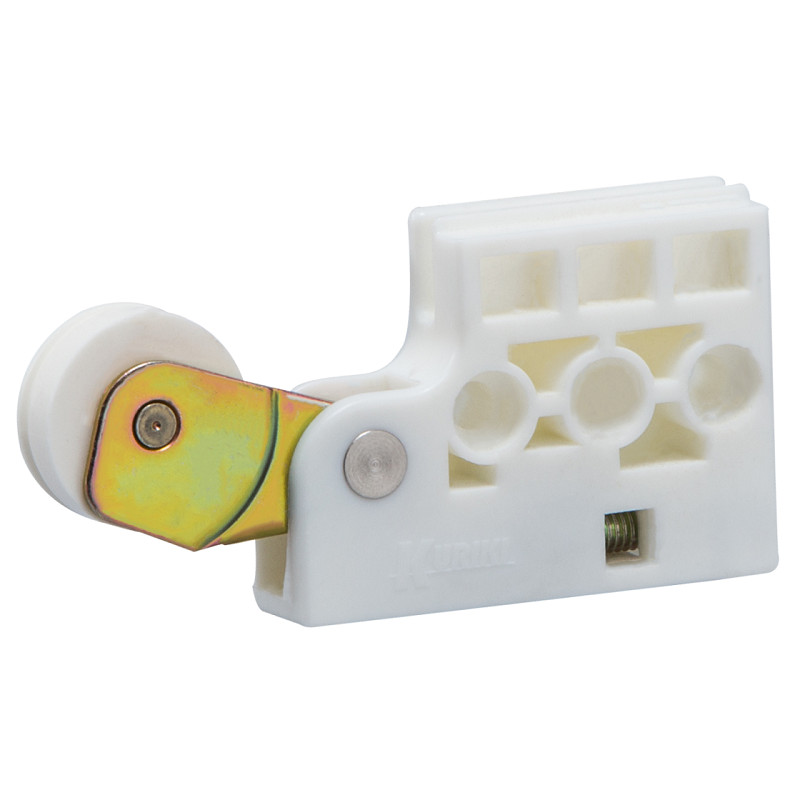

    〈Door Side Guide〉
    Resin

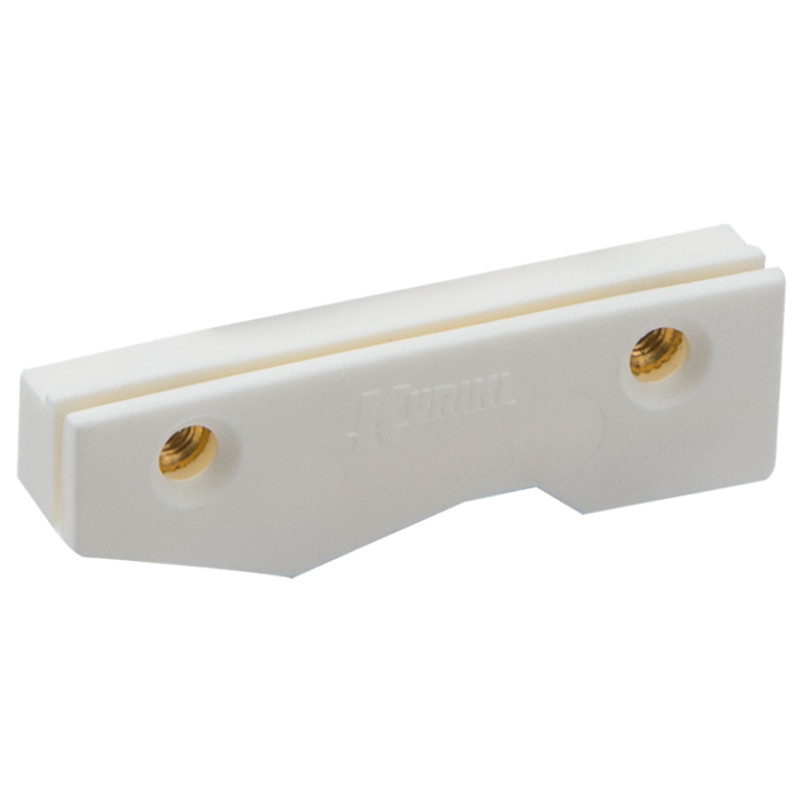

    〈Upper Stopper〉
    Resin

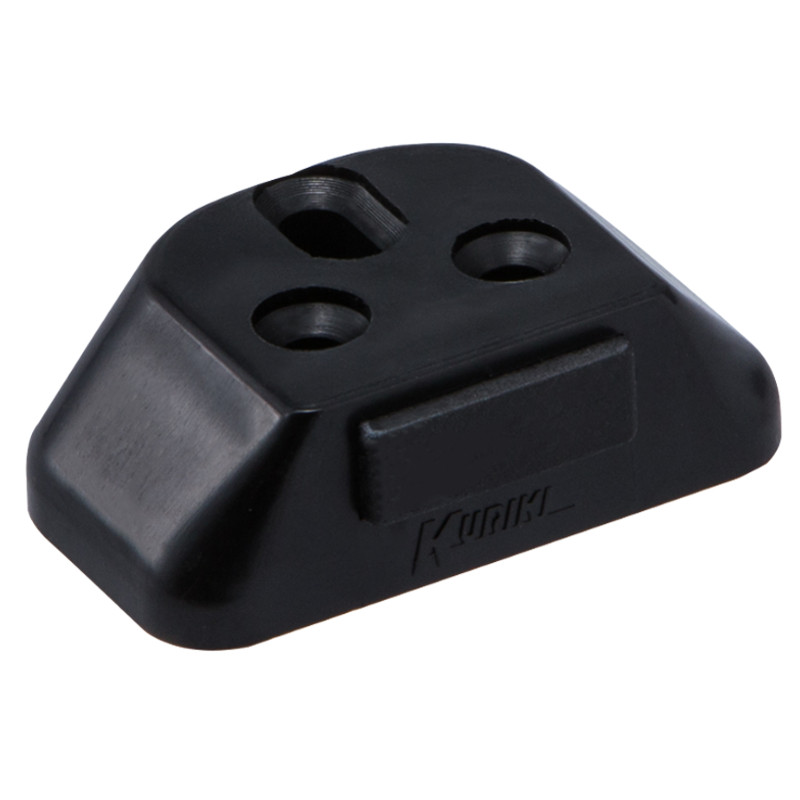

    〈Outset Lower Stopper〉
    Resin
    Finish / Color
    〈Upper Rail〉
    White
    〈Lower Rail〉
    Amber, Silver
    〈KT Adjusting Roller Door〉
    Amber
    〈Door Side Guide〉
    White
    〈Upper Stopper〉
    White
    〈Outset Lower Stopper〉
    Black
    Included Screws
    〈Upper Rail〉
    3.5×30 Flat head tapping screw
    〈Lower Rail〉
    2.7×16 Flat head wood screw
    〈KT Adjusting Roller Door〉
    4×30 Flat head tapping screw 2pcs
    〈Door Side Guide〉
    4×25 Flat head tapping screw 6pcs
    〈Upper Stopper〉
    M4×10 Flat head machine screw 4pcs
    〈Outset Lower Stopper〉
    4×30 Flat head tapping screw 6pcs
    Load Capacity
    30kg(294N)

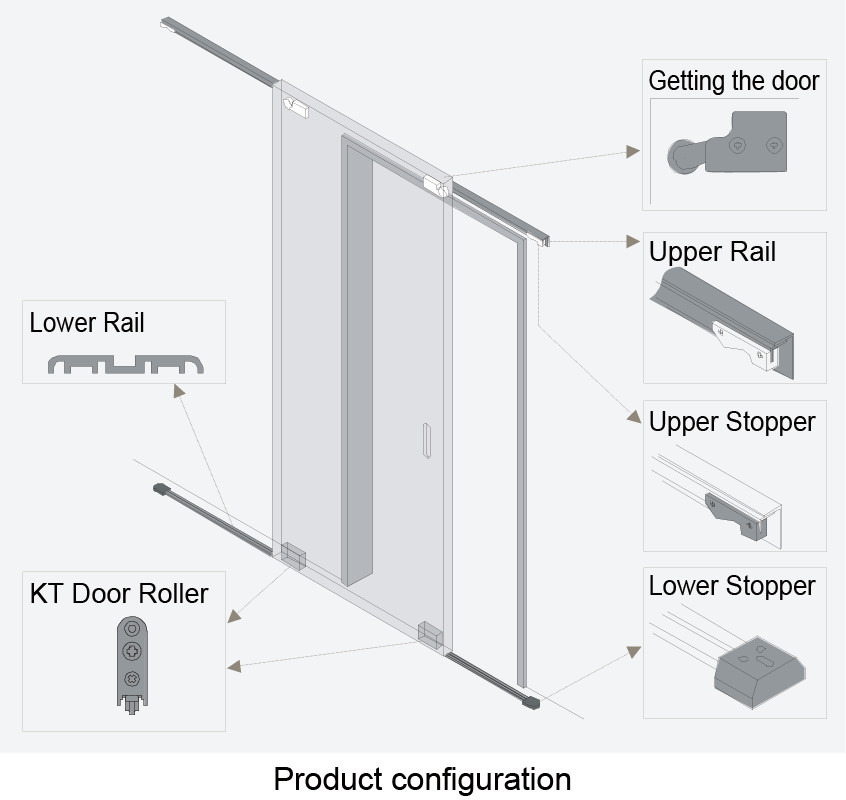

    Set contents
    Upper Rail 1pcs
    Lower Rail 1pcs
    KT Adjusting Roller Door 2pcs
    Door Side Guide 2pcs
    Upper Stopper 2pcs
    Outset Lower Stopper 2pcs
    Drawing sheet (PDF)

    PRICE LISTOutset Sliding Door Parts PRICE LIST

    Product No. Product Specification Price Action
    330-001 Upper Rail Length:1,388mm
    Lower Rail Length:1,392mm
    Lower Rail Color:Amber
    		 $121.00 Contact Us
    330-002 Upper Rail Length:1,570mm
    Lower Rail Length:1,574mm
    Lower Rail Color:Amber     		$121.00 Contact Us
    330-003 Upper Rail Length:1,628mm
    Lower Rail Length:1,632mm
    Lower Rail Color:Amber     		$121.00 Contact Us
    330-001S Upper Rail Length:1,388mm
    Lower Rail Length:1,392mm
    Lower Rail Color:Silver
    		 $121.00 Contact Us
    330-002S Upper Rail Length:1,570mm
    Lower Rail Length:1,574mm
    Lower Rail Color:Silver     		$121.00 Contact Us
    330-003S Upper Rail Length:1,628mm
    Lower Rail Length:1,632mm
    Lower Rail Color:Silver     		$121.00 Contact Us
