Strike Plate Products

DETAILPRODUCT DETAILS

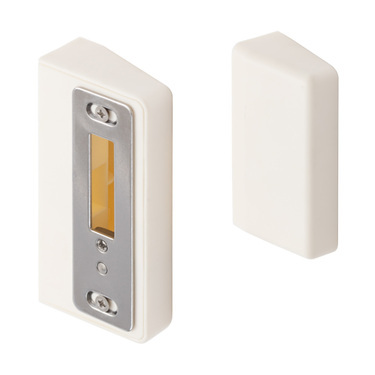

    Strike Plate(for Outset Sliding Door Fitting)

    Easy Installation
    This strike plate is suitable to be used together with the Outset Sliding Door Fittings set. The design is simple, so it does not interfere with the architectural appearance.
    Material
    Stainless, Resin
    Finish / Color
    〈Cover〉
    White
    〈Bracket〉
    Barrel Polishing
    Included Screws
    〈Base〉
    4×50 Truss head tapping screw 3pcs
    〈Plate〉
    3.5×16 Flat head tapping screw 2pcs
    Installation Range
    Left-Right±4mm
    Front-Back 5.5～7.5mm
    Drawing sheet (PDF)

    PRICE LISTStrike Plate PRICE LIST

    Product No. Product Specification Price Action
    330-005 Strike hole width:8.8×43mm $18.70 Contact Us
    330-006 Strike hole width:11.8×43mm $18.70 Contact Us
    330-007 Strike hole width:11.8×33mm
    Trigger type     		$18.70 Contact Us
