Heavy Duty Hung Door Products

DETAILPRODUCT DETAILS

    Heavy Duty Hung Door

    Easy Installation
    A set of top-hung track and rollers for indoor sliding doors allows doors weighing up to 100 kg to glide smoothly. This heavy-duty top-hung roller also has passed 500,000 operation tests to ensure the door will operate at its optimum for years to come.
    Material

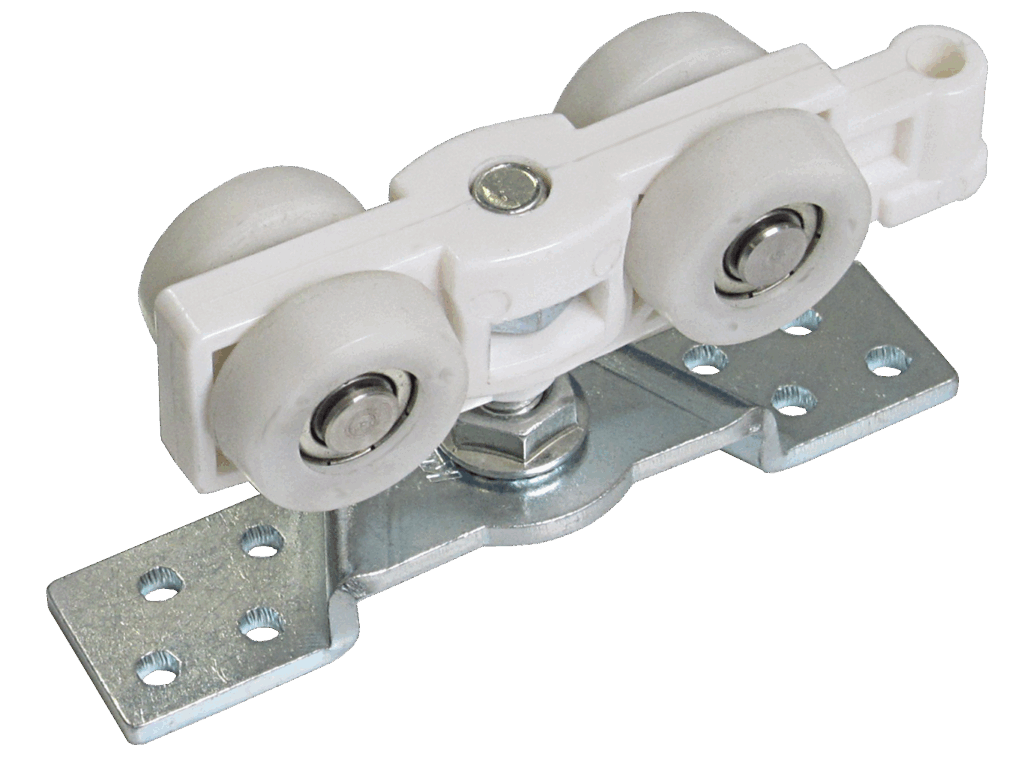

    〈Roller〉
    Resin, Steel

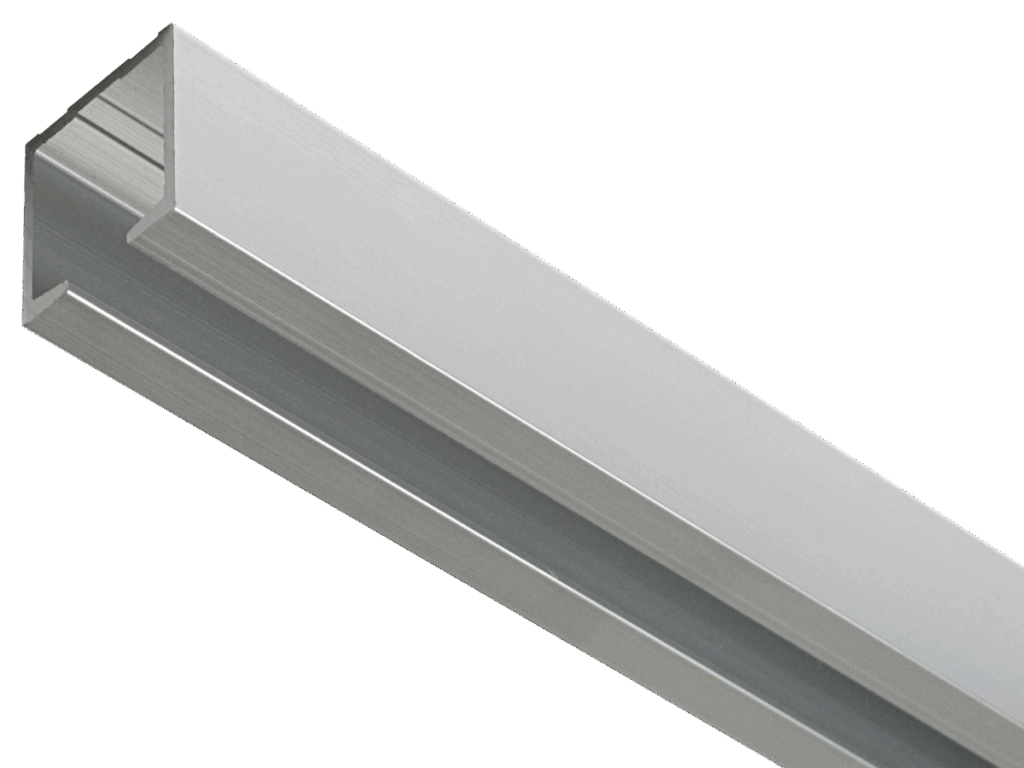

    〈Hung Door Rail〉
    Aluminum

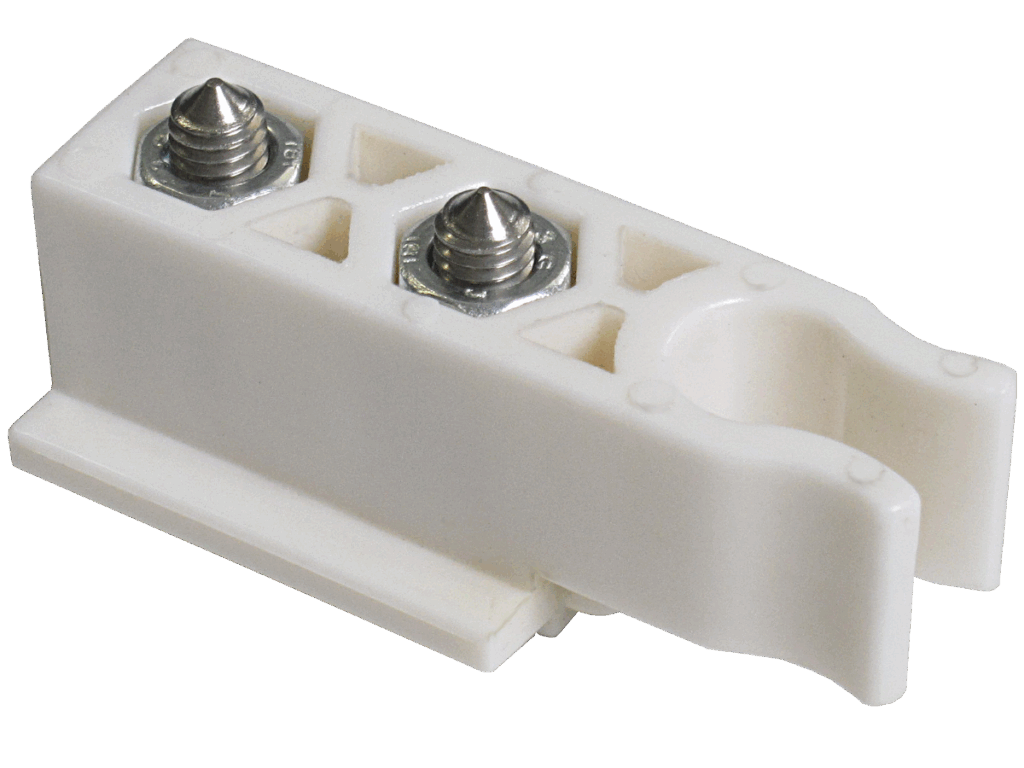

    〈Upper Stopper〉
    Resin

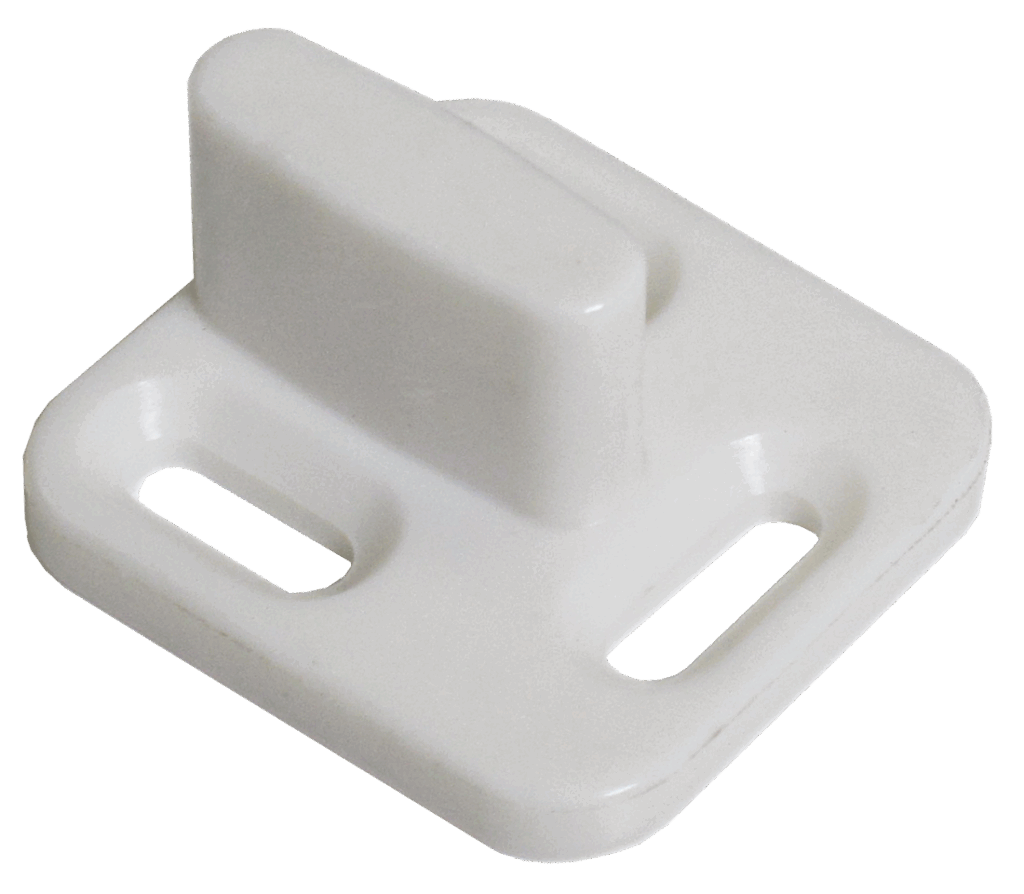

    〈Floor Guide〉
    Resin
    Finish / Color
    〈Roller〉
    White
    〈Hung Door Rail〉
    Silver
    〈Upper Stopper〉
    White
    〈Floor Guide〉
    White
    Included Screws
    〈Roller〉
    4×40 Oval head tapping screw 16pcs
    〈Hung Door Rail〉
    4×45 Flat head tapping screw
    （The number depends on the rail length.）
    〈Floor Guide〉
    4×30 Flat head tapping screw 3pcs
    Load Capacity
    100kg(980N)

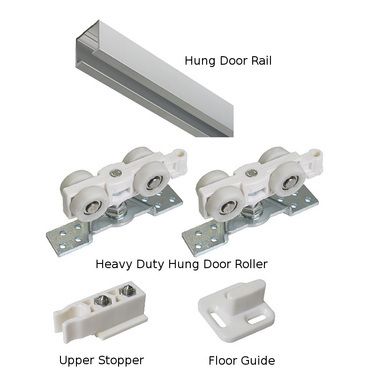

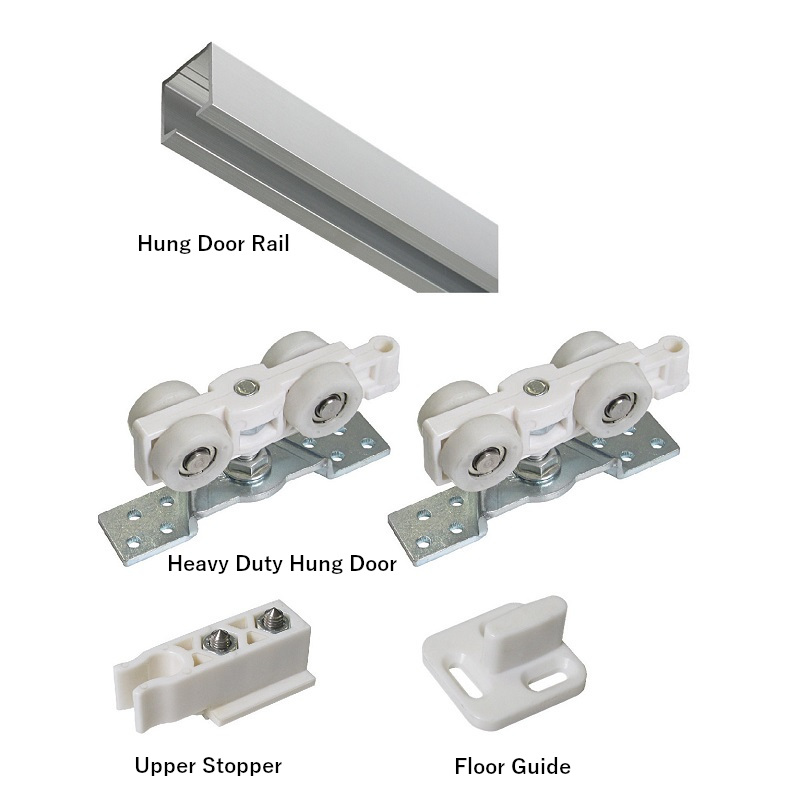

    Parts included
    Roller 2pcs
    Hung Door Rail 1pcs
    Upper Stopper 2pcs
    Floor Guide 1pcs
    Drawing sheet (PDF)

    PRICE LISTHeavy Duty Hung Door PRICE LIST

    Product No. Product Specification Price Action
    320-026 Length of the rail : 1,820mm $77.00 Contact Us
    320-027 Length of the rail : 2,730mm $88.00 Contact Us
    320-028 Length of the rail : 3,640mm $110.00 Contact Us
