CL Automatic Hook Lock Products

DETAILPRODUCT DETAILS

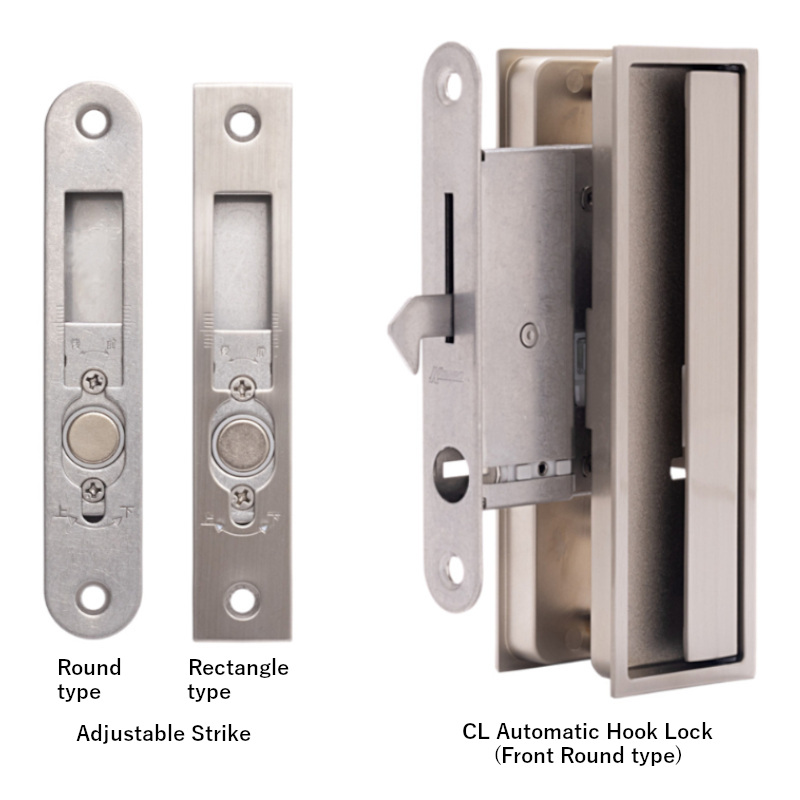

    CL Automatic Hook Lock

    Easy InstallationRecess Mount
    Not only provides the automatic-locking mechanism and other extensive practical benefits, but this lock is also designed exclusively to meet the demand for a good product, functionally and aesthetically. This product uses metal as the material, offering a solid and deluxe appearance, and the screws are also fixed in a concealed position, creating a seamless-looking product.

    Material
    〈Pull〉
    ZDC
    〈Lock Case, Strike〉
    Stainless, Steel

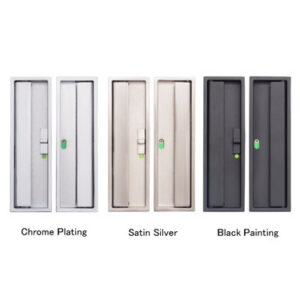

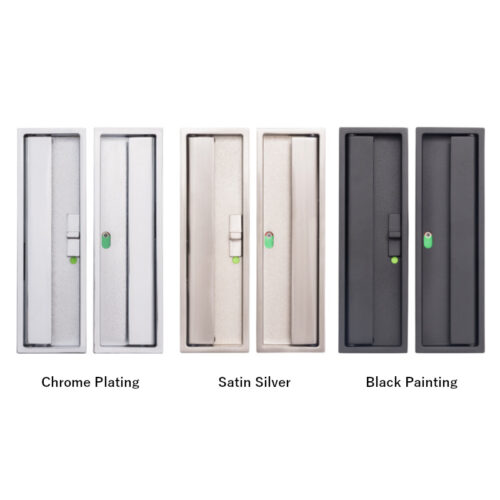

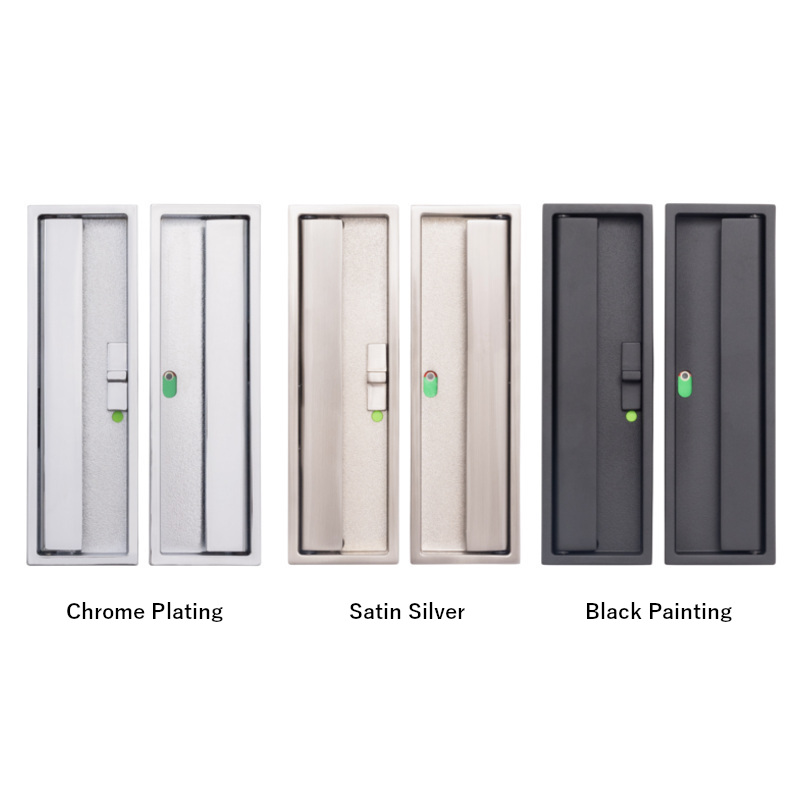

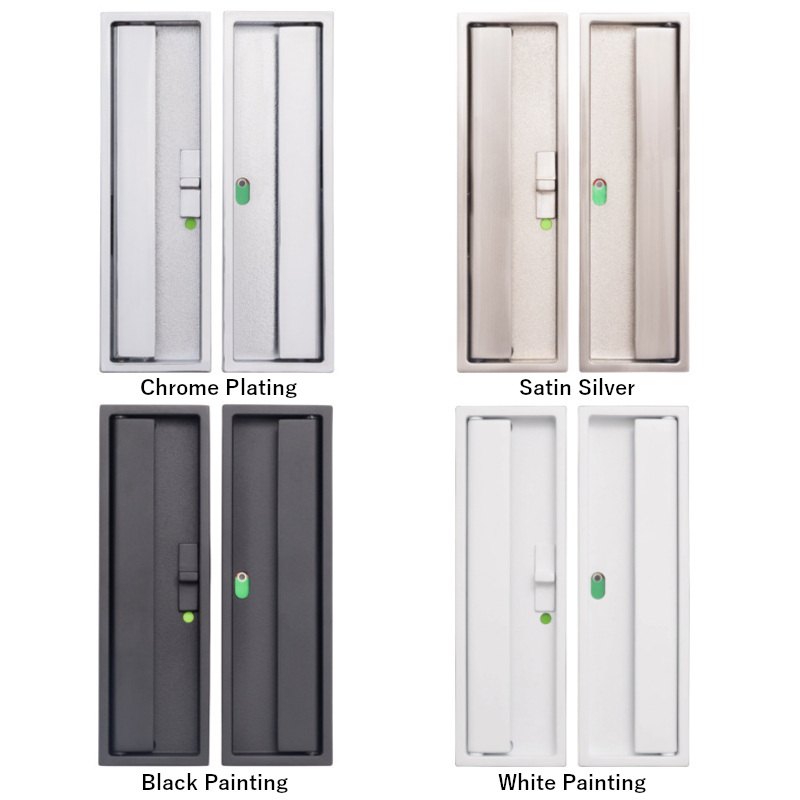

    Finish / Color
    Chrome Plating
    Satin Silver
    Black Painting

    The finish of the front of the lock case and the strike is barrel polishing.
    Included Screws
    〈Pull〉
    M3×10, 15, 18
    Flat head machine screw 2pcs
    (Depends on the door thickness.)
    〈Lock Case〉
    4×20 Flat head tapping screw 2pcs
    〈Strike〉
    4×20 Flat head tapping screw 2pcs
    Door Thickness
    〈Door Thickness〉
    30～46mm
    〈Strike Installation Range〉
    Up-Down±4mm
    Depth 4mm
    Drawing sheet (PDF)

    PRICE LISTCL Automatic Hook Lock PRICE LIST

    Product No. Product Specification Price Action
    224-679R Door Thickness:30～32mm　Passage Lock
    Color:Chrome Plating
    Front:Round type     		$84.70 Contact Us
    224-680R Door Thickness:30～32mm　Passage Lock
    Color:Satin Silver
    Front:Round type     		$84.70 Contact Us
    224-681R Door Thickness:30～32mm　Passage Lock
    Color:Black Painting
    Front:Round type     		$80.30 Contact Us
    224-661R Door Thickness:30～32mm　Privacy lock
    Color:Chrome Plating
    Front:Round type     		$88.00 Contact Us
    224-662R Door Thickness:30～32mm　Privacy lock
    Color:Satin Silver
    Front:Round type     		$88.00 Contact Us
    224-663R Door Thickness:30～32mm　Privacy lock
    Color:Black Painting
    Front:Round type     		$83.60 Contact Us
    224-664R Door Thickness:30～32mm　Indicator lock
    Color:Chrome Plating
    Front:Round type     		$88.00 Contact Us
    224-665R Door Thickness:30～32mm　Indicator lock
    Color:Satin Silver
    Front:Round type     		$88.00 Contact Us
    224-666R Door Thickness:30～32mm　Indicator lock
    Color:Black Painting
    Front:Round type     		$83.60 Contact Us
    224-679S Door Thickness:30～32mm　Passage Lock
    Color:Chrome Plating
    Front:Rectangle type     		$84.70 Contact Us
    224-680S Door Thickness:30～32mm　Passage Lock
    Color:Satin Silver
    Front:Rectangle type     		$84.70 Contact Us
    224-681S Door Thickness:30～32mm　Passage Lock
    Color:Black Painting
    Front:Rectangle type     		$80.30 Contact Us
    224-661S Door Thickness:30～32mm　Privacy lock
    Color:Chrome Plating
    Front:Rectangle type     		$88.00 Contact Us
    224-662S Door Thickness:30～32mm　Privacy lock
    Color:Satin Silver
    Front:Rectangle type     		$88.00 Contact Us
    224-663S Door Thickness:30～32mm　Privacy lock
    Color:Black Painting
    Front:Rectangle type     		$83.60 Contact Us
    224-664S Door Thickness:30～32mm　Indicator lock
    Color:Chrome Plating
    Front:Rectangle type     		$88.00 Contact Us
    224-665S Door Thickness:30～32mm　Indicator lock
    Color:Satin Silver
    Front:Rectangle type     		$88.00 Contact Us
    224-666S Door Thickness:30～32mm　Indicator lock
    Color:Black Painting
    Front:Rectangle type     		$83.60 Contact Us
    224-682R Door Thickness:33～36mm　Passage Lock
    Color:Chrome Plating
    Front:Round type     		$84.70 Contact Us
    224-683R Door Thickness:33～36mm　Passage Lock
    Color:Satin Silver
    Front:Round type     		$84.70 Contact Us
    224-684R Door Thickness:33～36mm　Passage Lock
    Color:Black Painting
    Front:Round type     		$80.30 Contact Us
    224-667R Door Thickness:33～36mm　Privacy lock
    Color:Chrome Plating
    Front:Round type     		$88.00 Contact Us
    224-668R Door Thickness:33～36mm　Privacy lock
    Color:Satin Silver
    Front:Round type     		$88.00 Contact Us
    224-669R Door Thickness:33～36mm　Privacy lock
    Color:Black Painting
    Front:Round type     		$83.60 Contact Us
    224-670R Door Thickness:33～36mm　Indicator lock
    Color:Chrome Plating
    Front:Round type     		$88.00 Contact Us
    224-671R Door Thickness:33～36mm　Indicator lock
    Color:Satin Silver
    Front:Round type     		$88.00 Contact Us
    224-672R Door Thickness:33～36mm　Indicator lock
    Color:Black Painting
    Front:Round type     		$83.60 Contact Us
    224-682S Door Thickness:33～36mm　Passage Lock
    Color:Chrome Plating
    Front:Rectangle type     		$84.70 Contact Us
    224-683S Door Thickness:33～36mm　Passage Lock
    Color:Satin Silver
    Front:Rectangle type     		$84.70 Contact Us
    224-684S Door Thickness:33～36mm　Passage Lock
    Color:Black Painting
    Front:Rectangle type     		$80.30 Contact Us
    224-667S Door Thickness:33～36mm　Privacy lock
    Color:Chrome Plating
    Front:Rectangle type     		$88.00 Contact Us
    224-668S Door Thickness:33～36mm　Privacy lock
    Color:Satin Silver
    Front:Rectangle type     		$88.00 Contact Us
    224-669S Door Thickness:33～36mm　Privacy lock
    Color:Black Painting
    Front:Rectangle type     		$83.60 Contact Us
    224-670S Door Thickness:33～36mm　Indicator lock
    Color:Chrome Plating
    Front:Rectangle type     		$88.00 Contact Us
    224-671S Door Thickness:33～36mm　Indicator lock
    Color:Satin Silver
    Front:Rectangle type     		$88.00 Contact Us
    224-672S Door Thickness:33～36mm　Indicator lock
    Color:Black Painting
    Front:Rectangle type     		$83.60 Contact Us
    224-685R Door Thickness:37～46mm　Passage Lock
    Color:Chrome Plating
    Front:Round type     		$84.70 Contact Us
    224-686R Door Thickness:37～46mm　Passage Lock
    Color:Satin Silver
    Front:Round type     		$84.70 Contact Us
    224-687R Door Thickness:37～46mm　Passage Lock
    Color:Black Painting
    Front:Round type     		$80.30 Contact Us
    224-673R Door Thickness:37～46mm　Privacy lock
    Color:Chrome Plating
    Front:Round type     		$88.00 Contact Us
    224-674R Door Thickness:37～46mm　Privacy lock
    Color:Satin Silver
    Front:Round type     		$88.00 Contact Us
    224-675R Door Thickness:37～46mm　Privacy lock
    Color:Black Painting
    Front:Round type     		$83.60 Contact Us
    224-676R Door Thickness:37～46mm　Indicator lock
    Color:Chrome Plating
    Front:Round type     		$88.00 Contact Us
    224-677R Door Thickness:37～46mm　Indicator lock
    Color:Satin Silver
    Front:Round type     		$88.00 Contact Us
    224-678R Door Thickness:37～46mm　Indicator lock
    Color:Black Painting
    Front:Round type     		$83.60 Contact Us
    224-685S Door Thickness:37～46mm　Passage Lock
    Color:Chrome Plating
    Front:Rectangle type     		$84.70 Contact Us
    224-686S Door Thickness:37～46mm　Passage Lock
    Color:Satin Silver
    Front:Rectangle type     		$84.70 Contact Us
    224-687S Door Thickness:37～46mm　Passage Lock
    Color:Black Painting
    Front:Rectangle type     		$80.30 Contact Us
    224-673S Door Thickness:37～46mm　Privacy lock
    Color:Chrome Plating
    Front:Rectangle type     		$88.00 Contact Us
    224-674S Door Thickness:37～46mm　Privacy lock
    Color:Satin Silver
    Front:Rectangle type     		$88.00 Contact Us
    224-675S Door Thickness:37～46mm　Privacy lock
    Color:Black Painting
    Front:Rectangle type     		$83.60 Contact Us
    224-676S Door Thickness:37～46mm　Indicator lock
    Color:Chrome Plating
    Front:Rectangle type     		$88.00 Contact Us
    224-677S Door Thickness:37～46mm　Indicator lock
    Color:Satin Silver
    Front:Rectangle type     		$88.00 Contact Us
    224-678S Door Thickness:37～46mm　Indicator lock
    Color:Black Painting
    Front:Rectangle type     		$83.60 Contact Us
