4 Wheels Adjuster・Rail set Products

DETAILPRODUCT DETAILS

    4 Wheels Adjuster・Rail set

    Easy InstallationRecess Mount

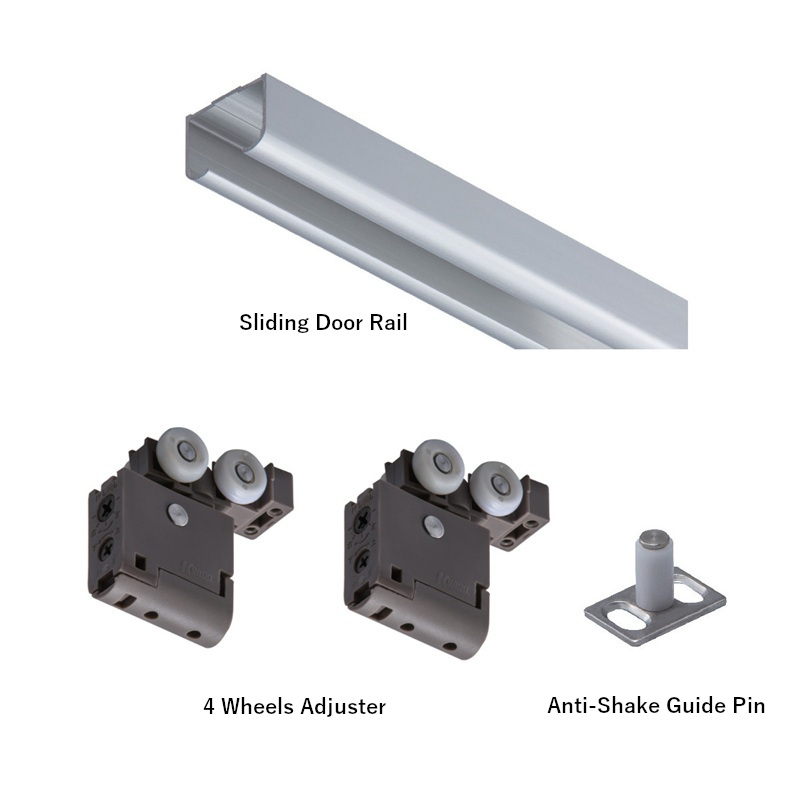

    4 Wheels Adjuster, Sliding Door Rail, and Anti-Shake Guide Pin.
    Top Hung Soft Closer is not included.
    Material
    〈4 Wheels Adjuster〉
    Resin
    〈Sliding Door Rail〉
    Aluminum
    〈Guide Pin〉
    Stainless, Resin
    Finish / Color

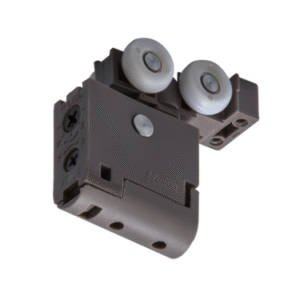

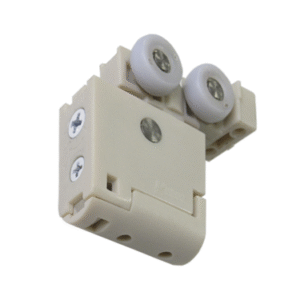

    〈4 Wheels Adjuster〉
    Amber, White
    〈Sliding Door Rail〉
    Silver
    〈Guide Pin〉
    Raw Material
    Included Screws
    〈4 Wheels Adjuster〉
    3.5×12 Flat head tapping screw 2pcs
    3.5×20 Pan head tapping screw 4pcs
    〈Sliding Door Rail〉
    3.5×45 Flat head tapping screw
    （The number depends on the rail length.）
    〈Anti-Shake Guide Pin〉
    3.5×25 Flat head tapping screw 2pcs
    Load Capacity
    30kg(294N)
    Set contents
    4 Wheels Adjuster 2pcs
    Sliding Door Rail 1pcs
    Anti-Shake Guide Pin 1pcs
    Drawing sheet (PDF)

    PRICE LIST4 Wheels Adjuster・Rail set PRICE LIST

    Product No. Product Specification Price Action
    312-034 Rail length：1,820mm
    4 Wheels Adjuster Color：Amber
    		 $52.80 Contact Us
    312-035 Rail length：2,730mm
    4 Wheels Adjuster Color：Amber
    		 $74.80 Contact Us
    312-036 Rail length：3,640mm
    4 Wheels Adjuster Color：Amber
    		 $88.00 Contact Us
    312-034W Rail length：1,820mm
    4 Wheels Adjuster Color：White
    		 $52.80 Contact Us
    312-035W Rail length：2,730mm
    4 Wheels Adjuster Color：White
    		 $74.80 Contact Us
    312-036W Rail length：3,640mm
    4 Wheels Adjuster Color：White
    		 $88.00 Contact Us
