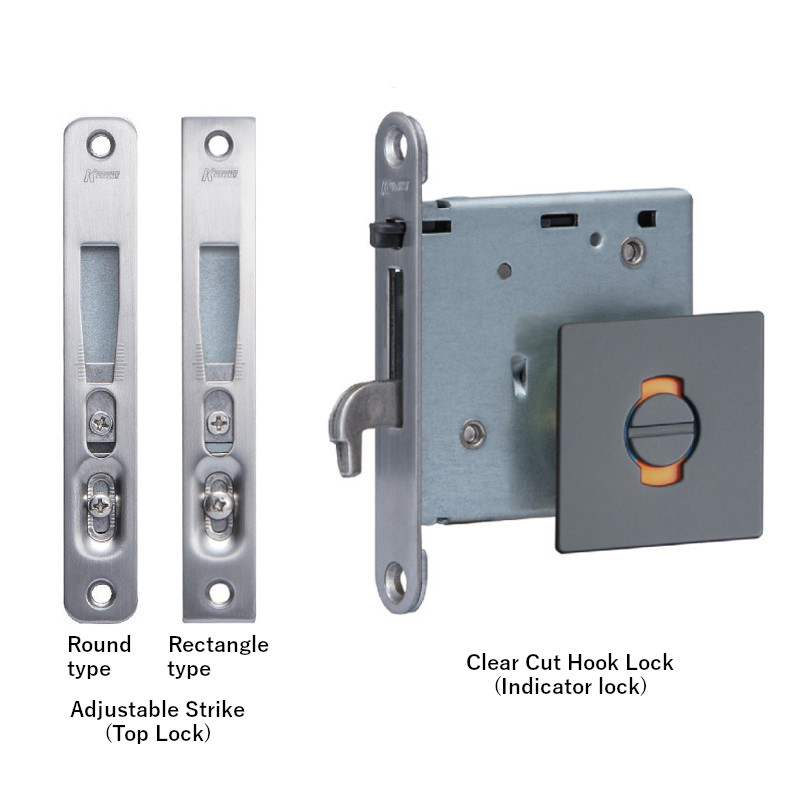

Clear Cut Hook Lock, Top Lock, BS51, Round Rose Products

The hook lock strikes out from above. Back set is 51 mm.

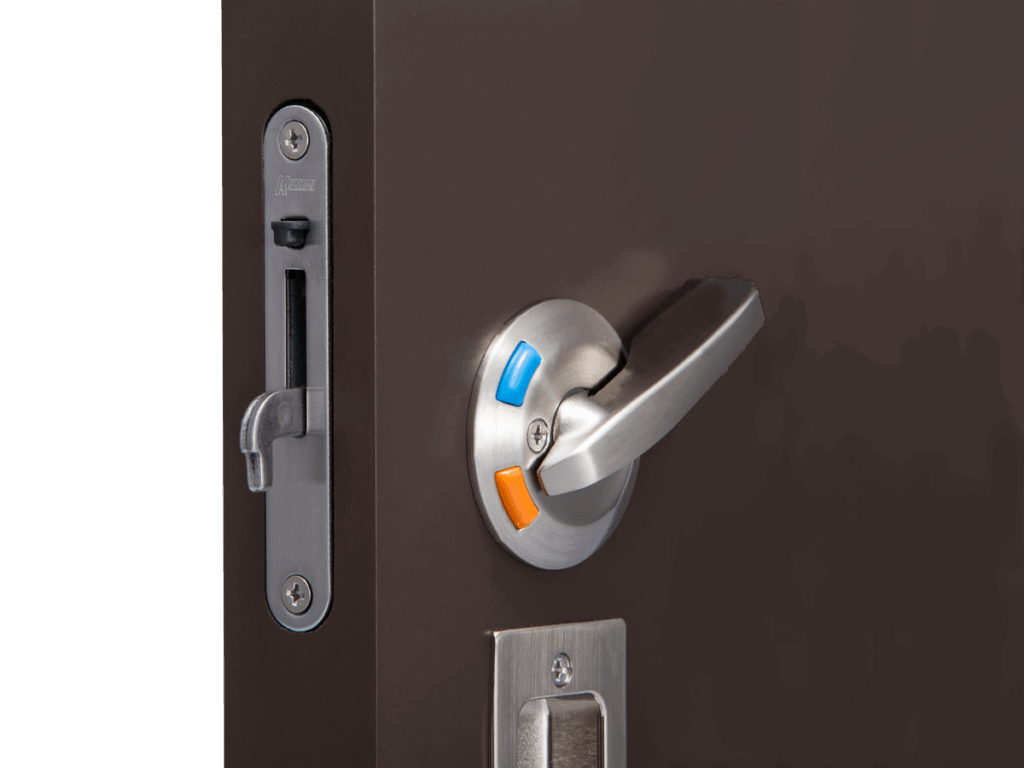

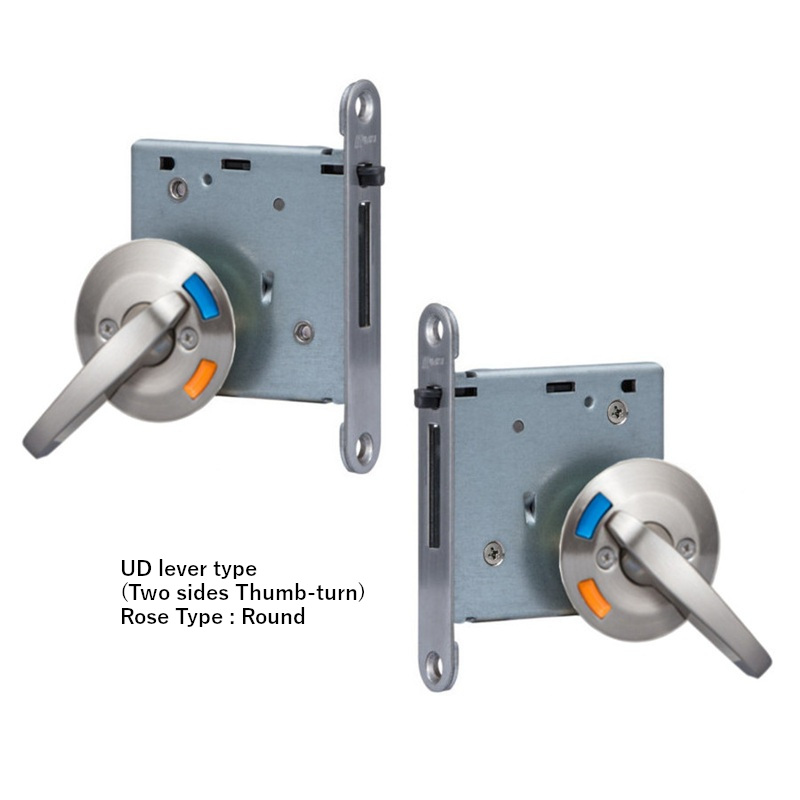

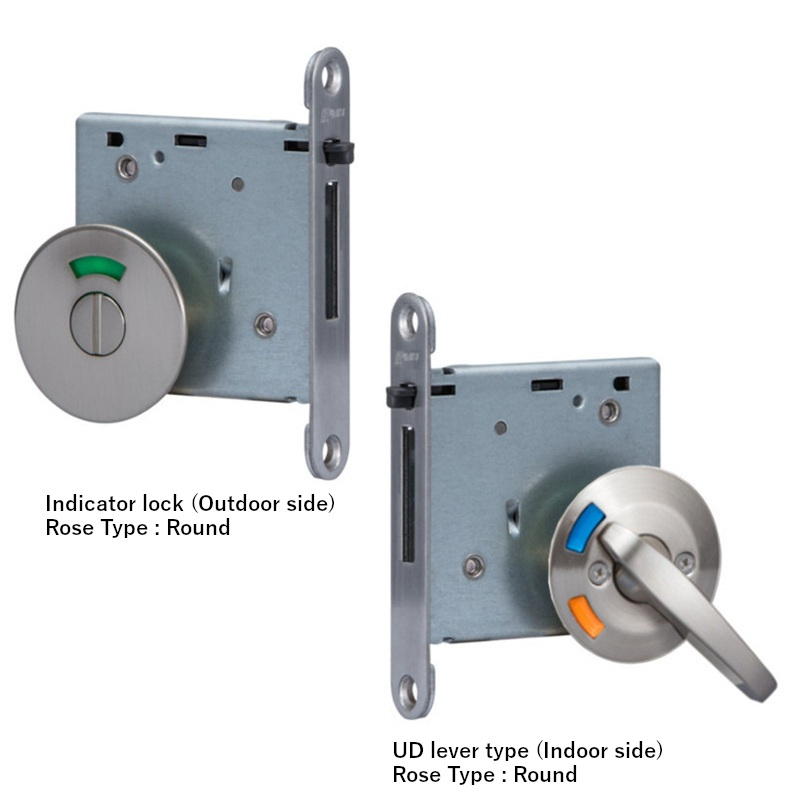

This hook lock for indoor sliding doors is good to prevent the door from accidentally being locked. It is impossible to operate the lock unless the door is hitting the trigger part and close perfectly. The product is universal as it can be configured with a standard lever or UD lever with a bigger grip so that everybody can use it easily. UD lever also uses blue and orange indicators, which is easier for anyone to recognize. The cylinder type uses a dimple key that provides 100 combinations, and there are 2 master keys available to generate 126 different child keys combinations.
(Please contact us for further details.)

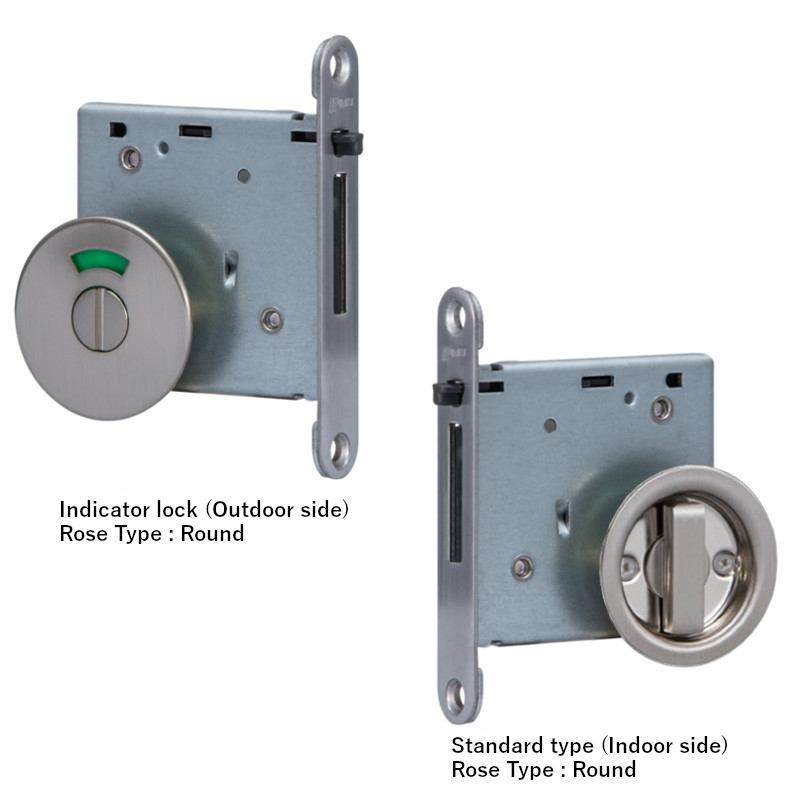

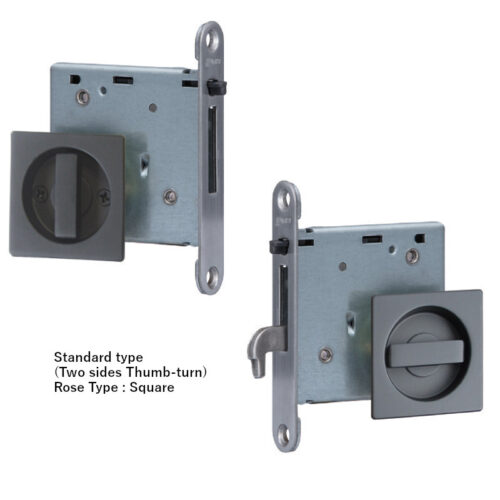

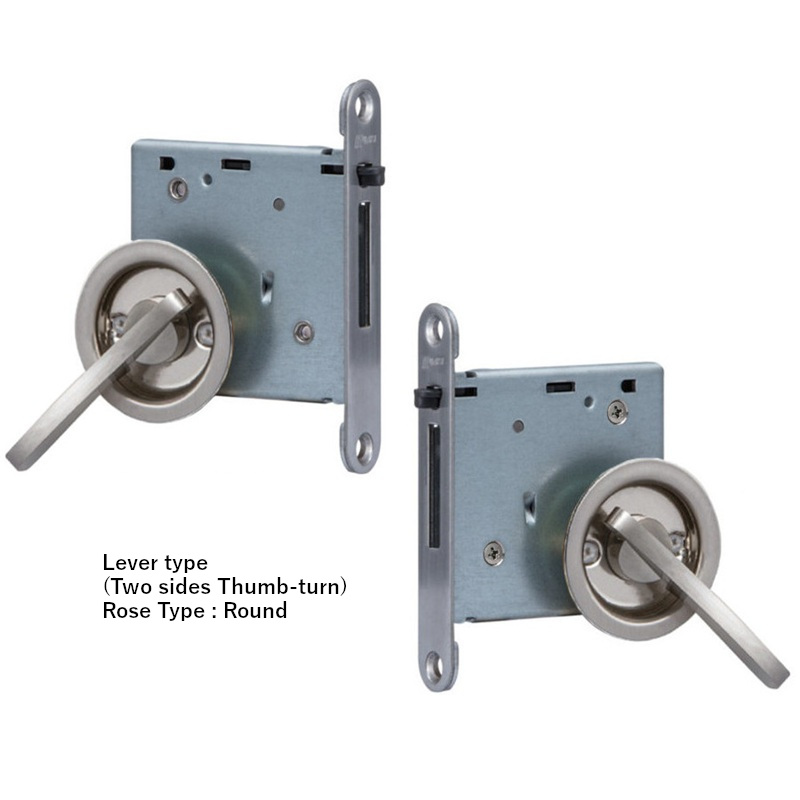

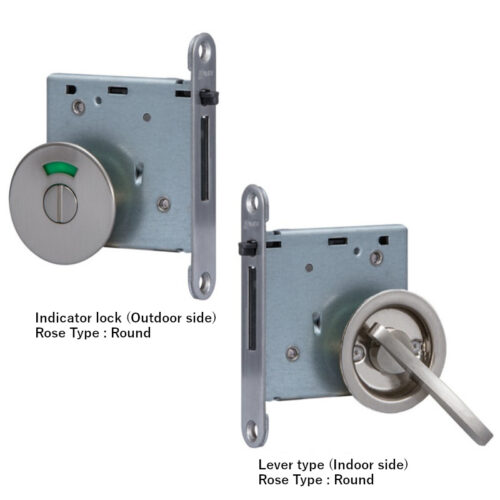

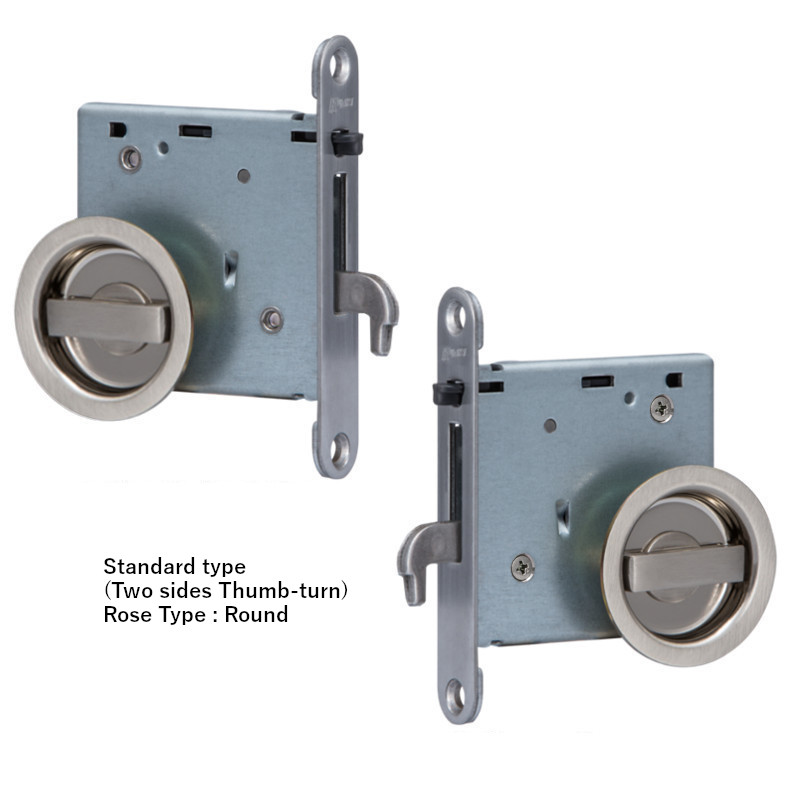

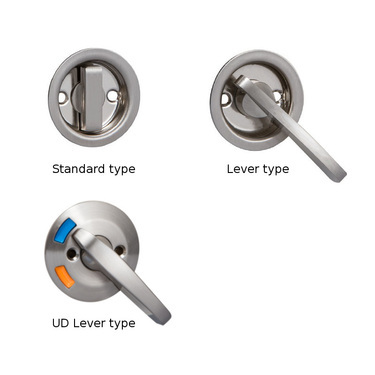

The lock is available in 4 different functions. The escutcheon is available in round and square types. The thumb turn is available in standard thumb turn type, standard lever type, and UD lever type. Available in 6 different colors to guarantee a perfect harmony with the different series of sliding doors.

※The following symbols are entered in the product number "◎" depending on the door thickness.
　● In the case of Indicator, Privaci lock, Two sides Thumb-turn
　　DT 30 ~ 34 : 04
　　DT 35 ~ 39 : 59
　　DT 40 : 40
　● Cyllinder lock
　　DT 30 ~ 35 : 05
　　DT 36 ~ 39 : 69
　　DT 40 : 40
