    Hinged Door Soft Closer

    Patented / Registered DesignEasy Installation

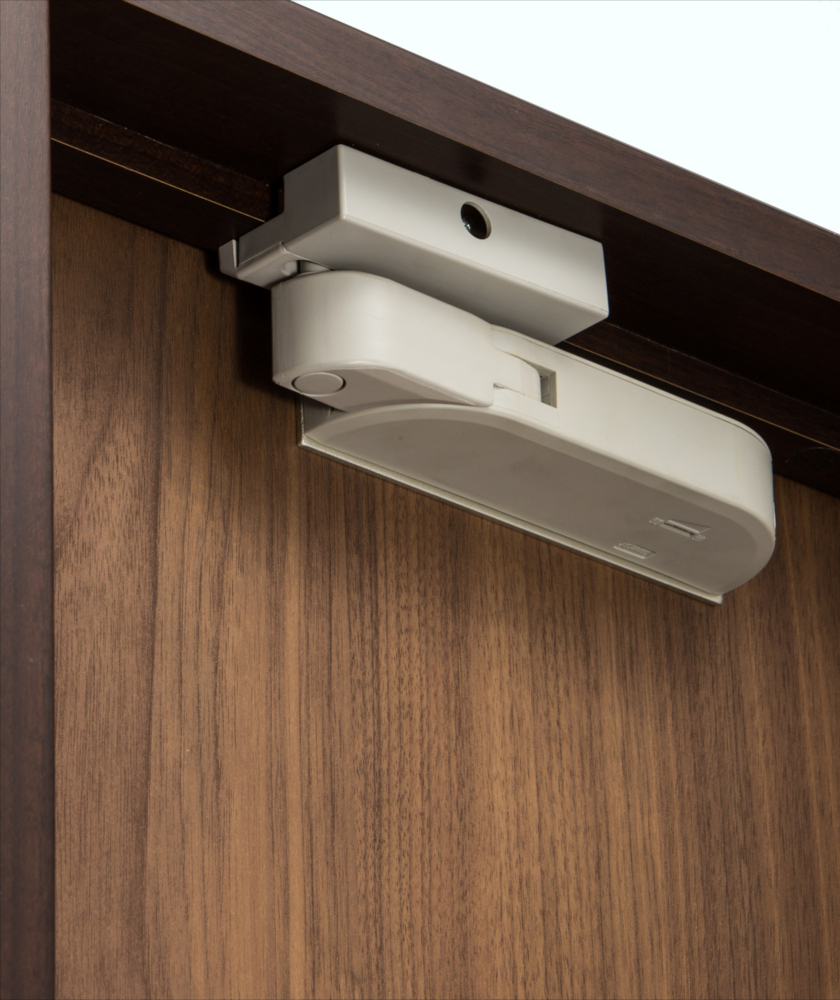

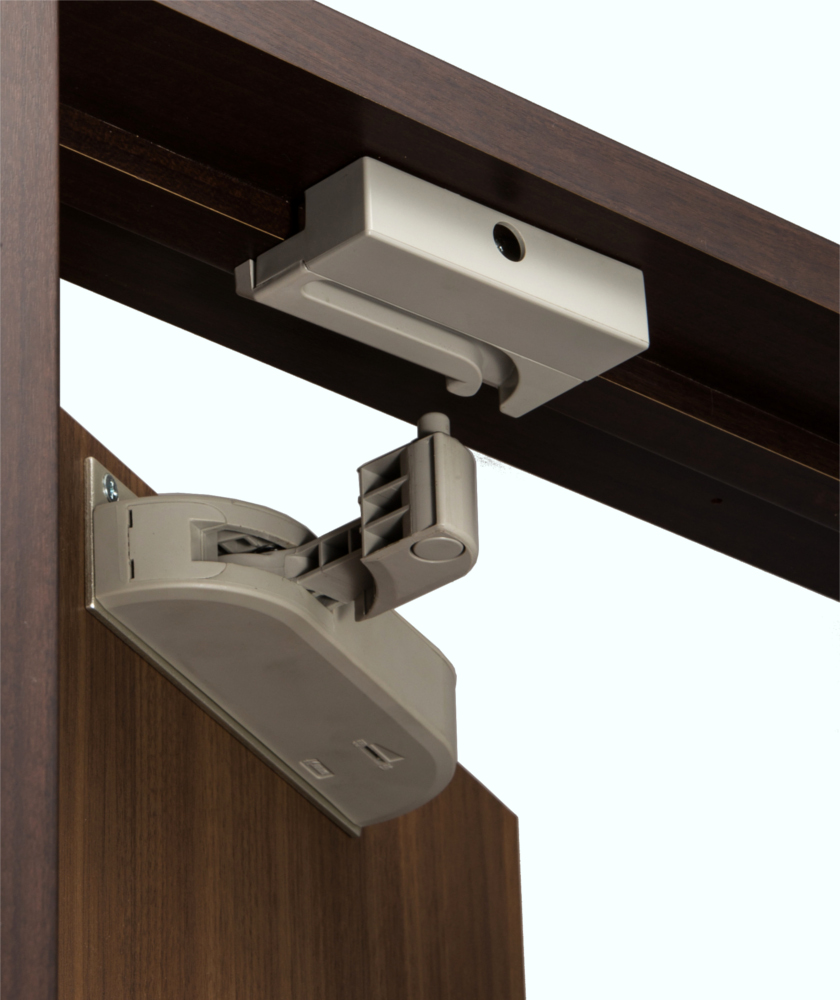

    This door closer is suitable for indoor use, either on a new or an existing door. It helps to reduce the unpleasant noise of the door hitting the frame and prevent it from slamming shut. The door closer will decelerate the speed of the door at ±40 mm towards the end and automatically pull the door to close perfectly. The installation can be done easily using the attached pattern paper. Once installed, the closing speed can be adjusted. Compared to the other products, ours has outstanding durability as it has passed 500,000 times during the performance test.


    Material
    〈Main unit・Spool bracket〉
    Resin, Steel

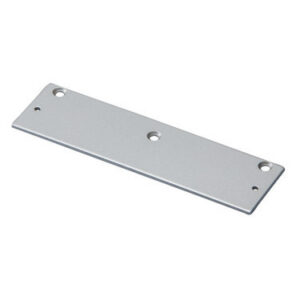

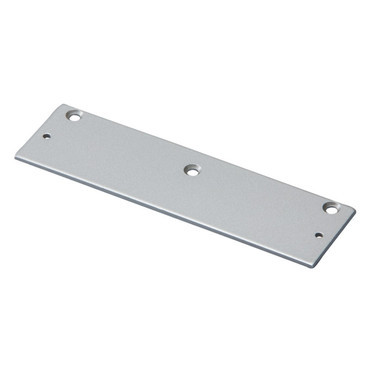

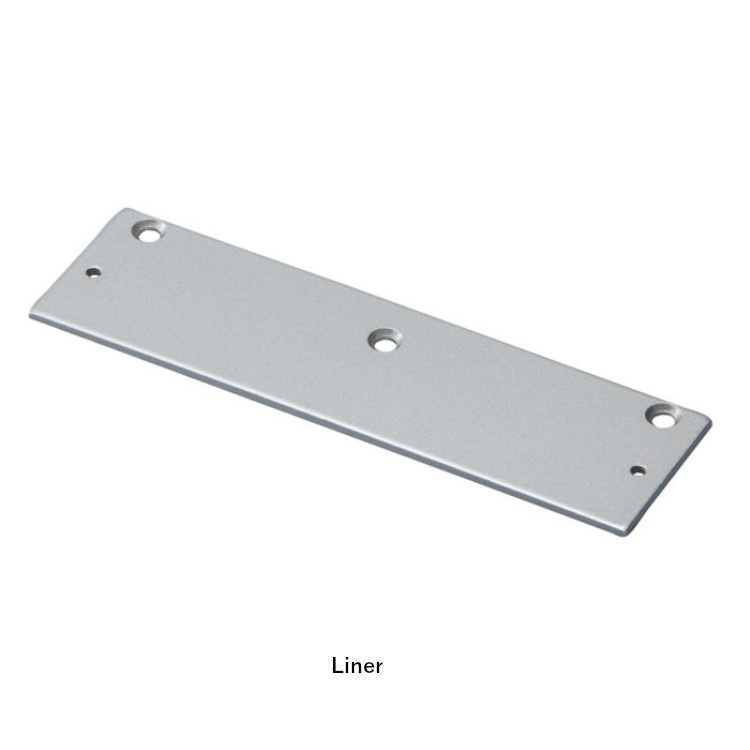

    〈Liner〉
    Steel

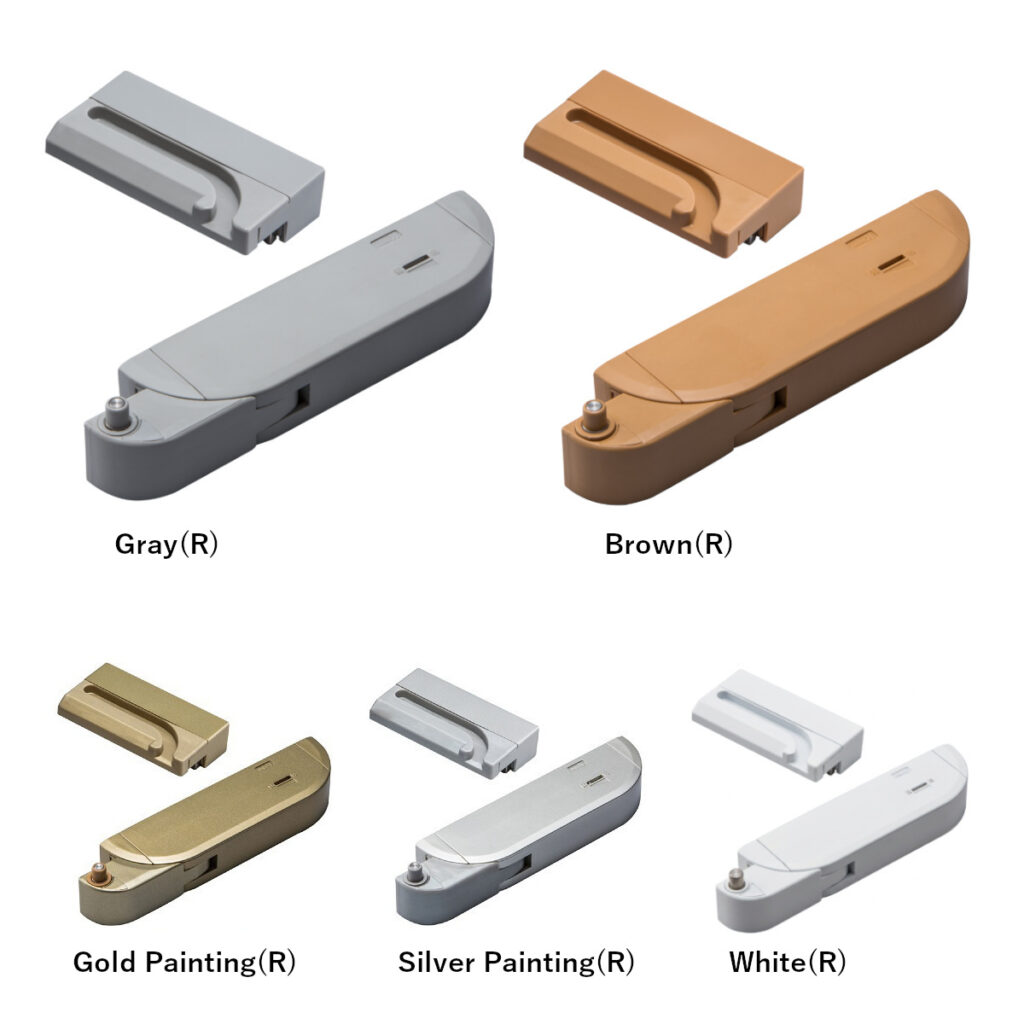

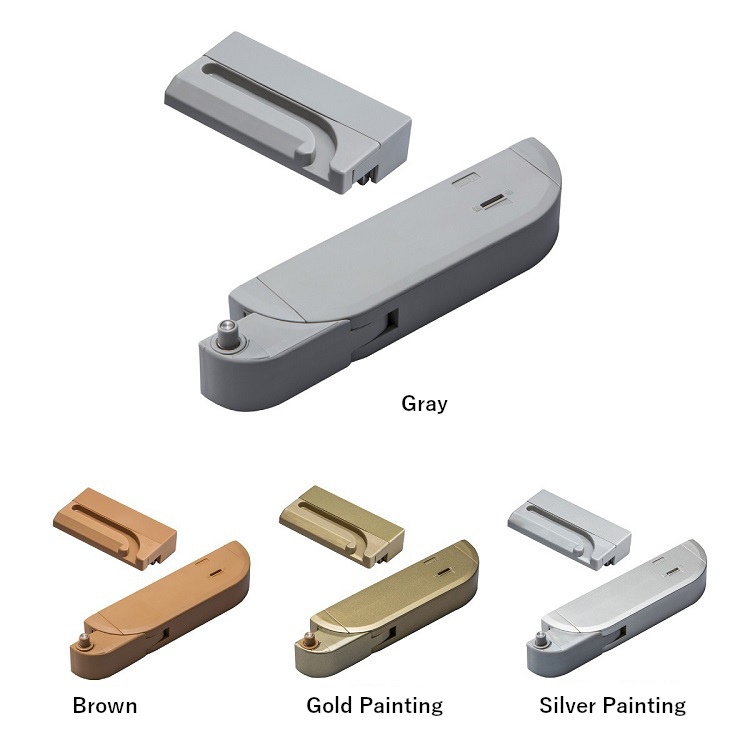

    Finish / Color
    Gold Painting
    Silver Painting
    Gray
    Brown
    Included Screws
    〈Bracket〉
    4×30 Binding head tapping screw 2pcs
    〈Main unit〉
    4×30 Pan head tapping screw 2pcs
    4×20 Flat head tapping screw 3pcs
    M4×12 Pan head machine screw 2pcs
    M4 Flat washer 2pcs
    Load Capacity
    10~30kg(98~294N)<br>
    ※Recommended door weight:10~25kg<br>
    45kg(441N)<br>
    ※Recommended door weight:26~40kg
    Installation Range
    Up-Down±5mm
    Left-Right±5mm
    Front-Back±4mm
    Product Catalog

    PRICE LISTHinged Door Soft Closer PRICE LIST

    Product No. Product Specification Price Action

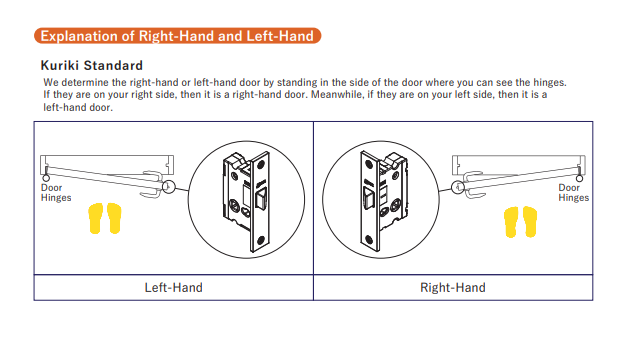

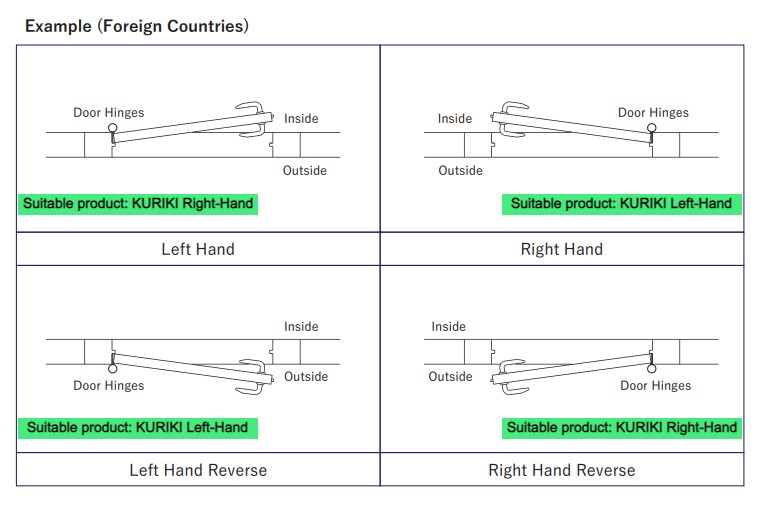

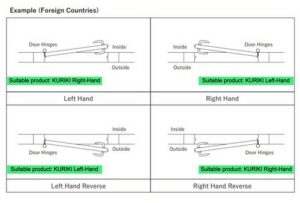

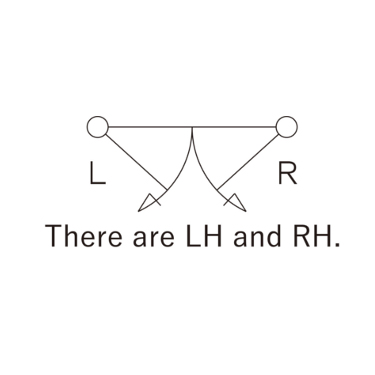

    312021 Left-Hand　Door weight:10~30kg(98~294N)
    Color:Gold Painting     		$40.48 Contact Us
    312022 Left-Hand　Door weight:10~30kg(98~294N)
    Color:Silver Painting     		$40.48 Contact Us
    312023 Left-Hand　Door weight:10~30kg(98~294N)
    Color:Gray     		$31.02 Contact Us
    312024 Left-Hand　Door weight:10~30kg(98~294N)
    Color:Brown     		$31.02 Contact Us
    312025 Right-Hand　Door weight:10~30kg(98~294N)
    Color:Gold Painting     		$40.48 Contact Us
    312026 Right-Hand　Door weight:10~30kg(98~294N)
    Color:Silver Painting     		$40.48 Contact Us
    312027 Right-Hand　Door weight:10~30kg(98~294N)
    Color:Gray     		$31.02 Contact Us
    312028 Right-Hand　Door weight:10~30kg(98~294N)
    Color:Brown     		$31.02 Contact Us
    312051 Left-Hand　Door weight:45kg(441N)
    Color:Gold Painting     		$54.45 Contact Us
    312052 Left-Hand　Door weight:45kg(441N)
    Color:Silver Painting     		$54.45 Contact Us
    312053 Left-Hand　Door weight:45kg(441N)
    Color:Gray     		$44.33 Contact Us
    312054 Left-Hand　Door weight:45kg(441N)
    Color:Brown     		$44.33 Contact Us
    312055 Right-Hand　Door weight:45kg(441N)
    Color:Gold Painting     		$54.45 Contact Us
    312056 Right-Hand　Door weight:45kg(441N)
    Color:Silver Painting     		$54.45 Contact Us
    312057 Right-Hand　Door weight:45kg(441N)
    Color:Gray     		$44.33 Contact Us
    312058 Right-Hand　Door weight:45kg(441N)
    Color:Brown     		$44.33 Contact Us

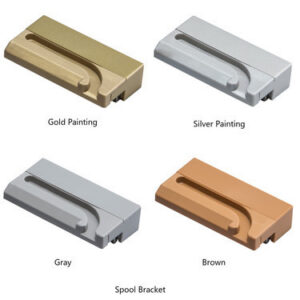

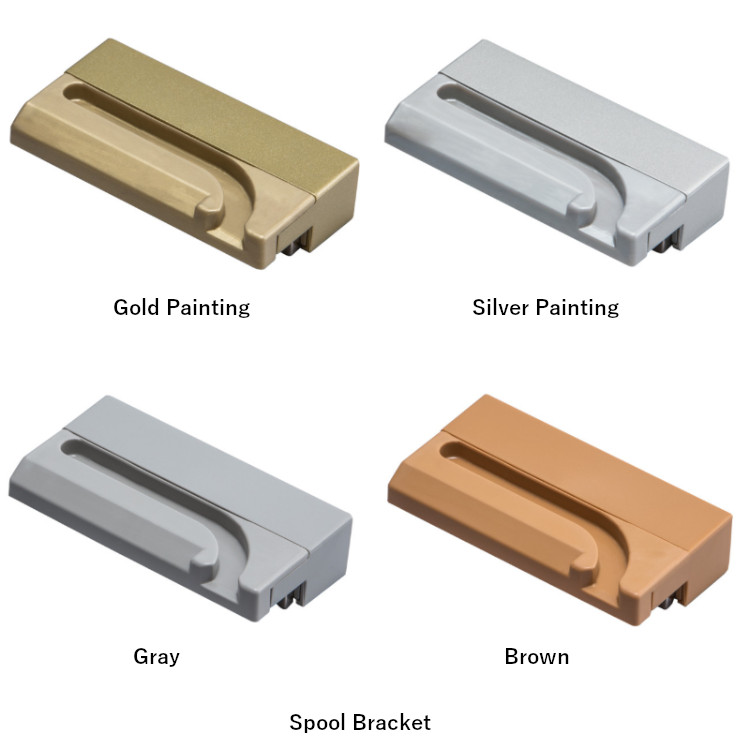

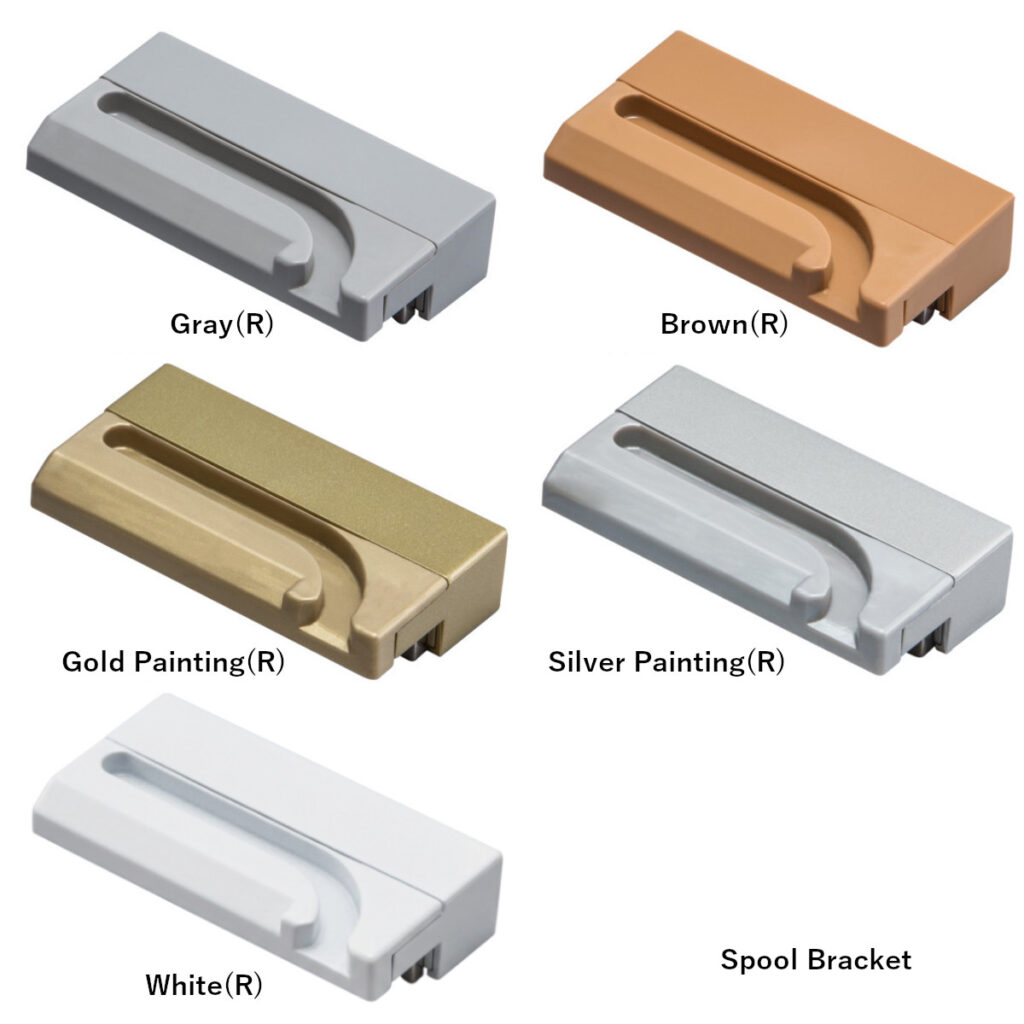

    P1-312021 Spool Bracket 【Aftermarket Parts】
    Left Hand, Color:Gold Painting     		$22.77 Contact Us
    P1-312022 Spool Bracket 【Aftermarket Parts】
    Left Hand, Color:Silver Painting     		$22.77 Contact Us
    P1-312023 Spool Bracket 【Aftermarket Parts】
    Left Hand, Color:Gray     		$22.77 Contact Us
    P1-312024 Spool Bracket 【Aftermarket Parts】
    Left Hand, Color:Brown     		$22.77 Contact Us
    P1-312025 Spool Bracket 【Aftermarket Parts】
    Right Hand, Color:Gold Painting     		$22.77 Contact Us
    P1-312026 Spool Bracket 【Aftermarket Parts】
    Right Hand, Color:Silver Painting     		$22.77 Contact Us
    P1-312027 Spool Bracket 【Aftermarket Parts】
    Right Hand, Color:Gray     		$22.77 Contact Us
    P1-312028 Spool Bracket 【Aftermarket Parts】
    Right Hand, Color:Brown     		$22.77 Contact Us
