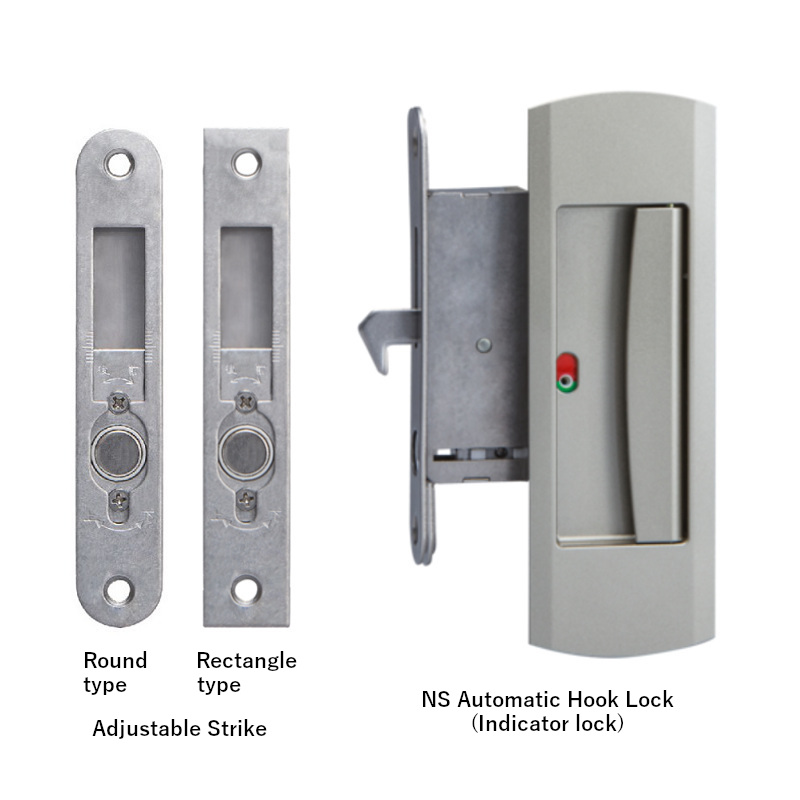

    NS Automatic Hook Lock

    Easy InstallationRecess Mount
    By adding up a magnet, this product not only can prevent the door from not closing perfectly or bouncing back. But it can also automatically lock the door by dropping the hook once the door is pulled to close entirely by the magnet force. Pull the puller to lift the hook, and the door will become moveable. The product without a lock is also an option for your sliding door.
    Material
    〈Pull〉
    Resin
    〈Lock Case, Strike〉
    Stainless, Steel

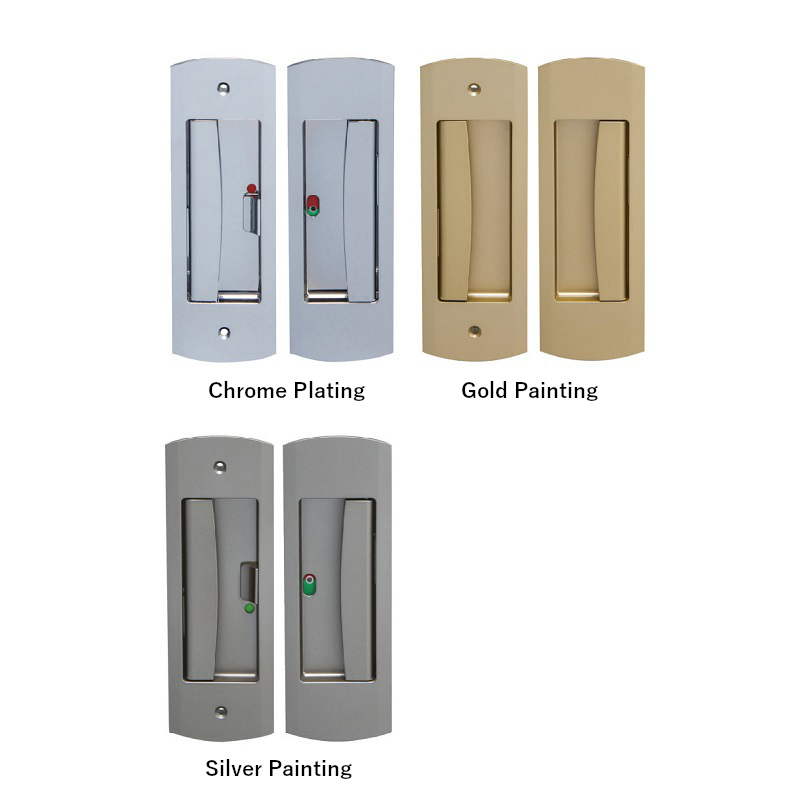

    Finish / Color
    Chrome Plating
    Gold Painting
    Silver Painting

    The finish of the front of the Lock Case and the Strike is Barrel Polishing.
    Included Screws
    〈Pull〉
    M3×30 Flat head machine screw 2pcs
    〈Lock Case〉
    4×20 Flat head tapping screw 2pcs
    〈Strike〉
    4×20 Flat head tapping screw 2pcs
    Note
    〈Door Thickness〉
    DT33_29.5～34.5mm
    DT36_34.6～39.0mm
    〈Strike Installation Range〉
    Up-Down±4mm
    Depth 4mm
    Product Catalog

    PRICE LISTNS Automatic Hook Lock PRICE LIST

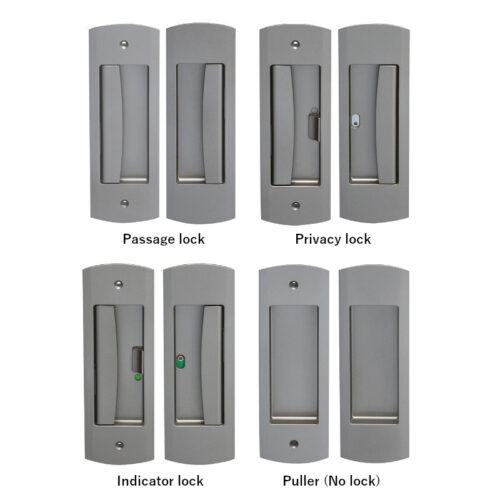

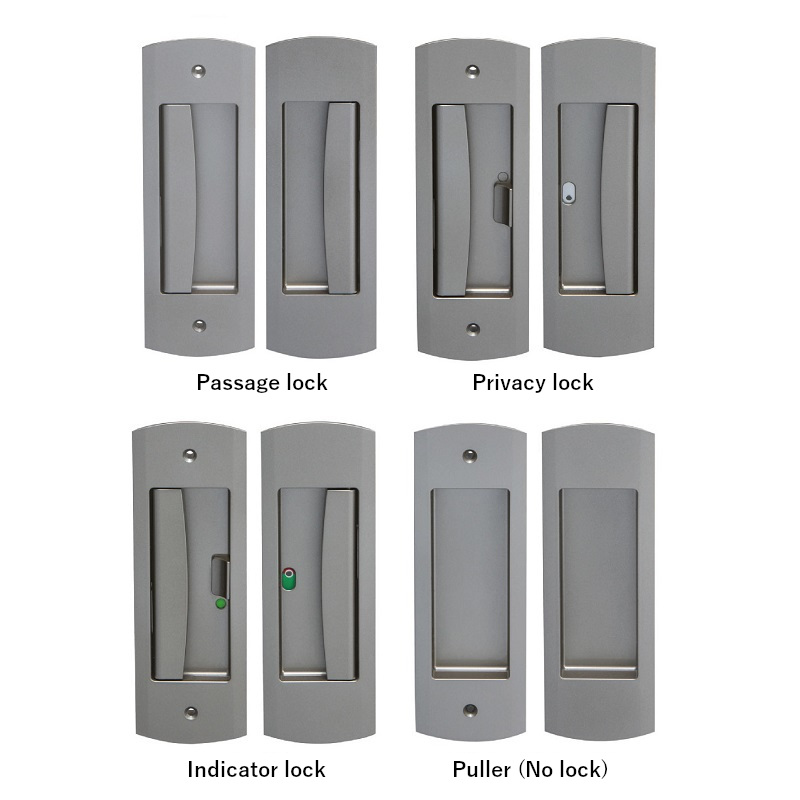

    Product No. Product Specification Price Action
    224621R DT33, Round type faceplate, Passage Lock
    Color:Chrome Plating     		$72.16 Contact Us
    224622R DT33, Round type faceplate, Passage Lock
    Color:Gold Painting     		$65.78 Contact Us
    224623R DT33, Round type faceplate, Passage Lock
    Color:Silver Painting     		$65.78 Contact Us
    224624R DT36, Round type faceplate, Passage Lock
    Color:Chrome Plating     		$72.16 Contact Us
    224625R DT36, Round type faceplate, Passage Lock
    Color:Gold Painting     		$65.78 Contact Us
    224626R DT36, Round type faceplate, Passage Lock
    Color:Silver Painting     		$65.78 Contact Us
    224631R DT33, Round type faceplate, Privacy Lock
    Color:Chrome Plating     		$75.90 Contact Us
    224632R DT33, Round type faceplate, Privacy Lock
    Color:Gold Painting     		$69.63 Contact Us
    224633R DT33, Round type faceplate, Privacy Lock
    Color:Silver Painting     		$69.63 Contact Us
    224634R DT36, Round type faceplate, Privacy Lock
    Color:Chrome Plating     		$75.90 Contact Us
    224635R DT36, Round type faceplate, Privacy Lock
    Color:Gold Painting     		$69.63 Contact Us
    224636R DT36, Round type faceplate, Privacy Lock
    Color:Silver Painting     		$69.63 Contact Us
    224641R DT33, Round type faceplate, Indicator Lock
    Color:Chrome Plating     		$75.90 Contact Us
    224642R DT33, Round type faceplate, Indicator Lock
    Color:Gold Painting     		$69.63 Contact Us
    224643R DT33, Round type faceplate, Indicator Lock
    Color:Silver Painting     		$69.63 Contact Us
    224644R DT36, Round type faceplate, Indicator Lock
    Color:Chrome Plating     		$75.90 Contact Us
    224645R DT36, Round type faceplate, Indicator Lock
    Color:Gold Painting     		$69.63 Contact Us
    224646R DT36, Round type faceplate, Indicator Lock
    Color:Silver Painting     		$69.63 Contact Us
    224621S DT33, Rectangle type faceplate, Passage Lock
    Color:Chrome Plating     		$72.16 Contact Us
    224622S DT33, Rectangle type faceplate, Passage Lock
    Color:Gold Painting     		$65.78 Contact Us
    224623S DT33, Rectangle type faceplate, Passage Lock
    Color:Silver Painting     		$65.78 Contact Us
    224624S DT36, Rectangle type faceplate, Passage Lock
    Color:Chrome Plating     		$72.16 Contact Us
    224625S DT36, Rectangle type faceplate, Passage Lock
    Color:Gold Painting     		$65.78 Contact Us
    224626S DT36, Rectangle type faceplate, Passage Lock
    Color:Silver Painting     		$65.78 Contact Us
    224631S DT33, Rectangle type faceplate, Privacy Lock
    Color:Chrome Plating     		$75.90 Contact Us
    224632S DT33, Rectangle type faceplate, Privacy Lock
    Color:Gold Painting     		$69.63 Contact Us
    224633S DT33, Rectangle type faceplate, Privacy Lock
    Color:Silver Painting     		$69.63 Contact Us
    224634S DT36, Rectangle type faceplate, Privacy Lock
    Color:Chrome Plating     		$75.90 Contact Us
    224635S DT36, Rectangle type faceplate, Privacy Lock
    Color:Gold Painting     		$69.63 Contact Us
    224636S DT36, Rectangle type faceplate, Privacy Lock
    Color:Silver Painting     		$69.63 Contact Us
    224641S DT33, Rectangle type faceplate, Indicator Lock
    Color:Chrome Plating     		$75.90 Contact Us
    224642S DT33, Rectangle type faceplate, Indicator Lock
    Color:Gold Painting     		$69.63 Contact Us
    224643S DT33, Rectangle type faceplate, Indicator Lock
    Color:Silver Painting     		$69.63 Contact Us
    224644S DT36, Rectangle type faceplate, Indicator Lock
    Color:Chrome Plating     		$75.90 Contact Us
    224645S DT36, Rectangle type faceplate, Indicator Lock
    Color:Gold Painting     		$69.63 Contact Us
    224646S DT36, Rectangle type faceplate, Indicator Lock
    Color:Silver Painting     		$36.96 Contact Us
    224651 DT33, Puller (No Lock)
    Color:Chrome Plating     		$19.03 Contact Us
    224652 DT33, Puller (No Lock)
    Color:Gold Painting     		$12.65 Contact Us
    224653 DT33, Puller (No Lock)
    Color:Silver Painting     		$12.65 Contact Us
    224654 DT36, Puller (No Lock)
    Color:Chrome Plating     		$19.03 Contact Us
    224655 DT36, Puller (No Lock)
    Color:Gold Painting     		$12.65 Contact Us
    224656 DT36, Puller (No Lock)
    Color:Silver Painting     		$12.65 Contact Us
